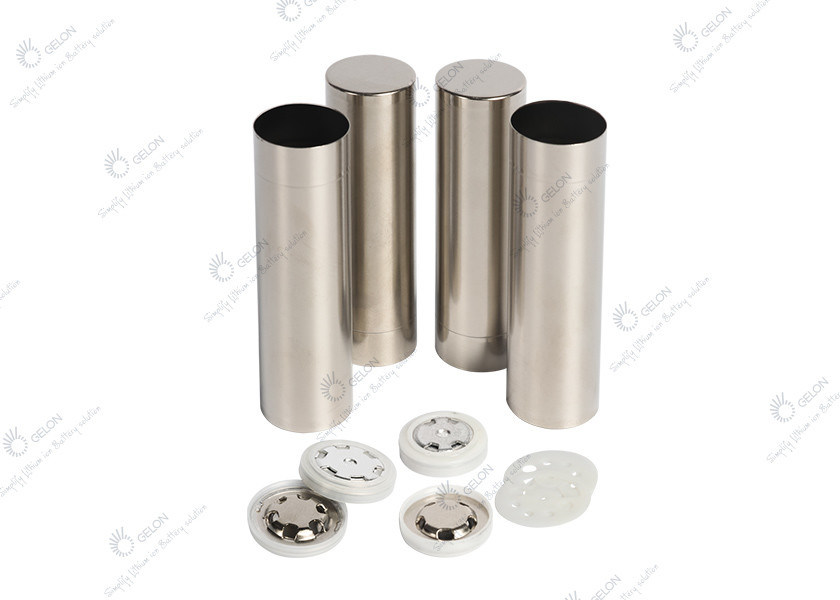

Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case

Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case
Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case

Large Image :  Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case

Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: 18650 26650 21700 32650
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: USD 0.5-1 pcs
Packaging Details: Standard export package
Delivery Time: 7 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 sets per month

Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case

Description
Product Name: 18650 26650 21700 32650 Cylinder Cell Case Case & Cap: Made Of Nickel Plated A3 Steel
Seal O-ring & Spacer: Nylon Insulating: PET
Holder: Air Plug,can Holder Box Or Testing Line Voltage: AC220V,50HZ,Power≤20W
Dimensions (Dia X Height): Case: 32mm(OD) X 31.5mm(ID) X 68mm(H) Top Cap: 31.5mm(D) X 5.3mm(H) Weight: 28.85g/pcs
High Light:

Lithium Battery Raw Material

,

32650 Cylinder Cell Case

,

26650 Battery Raw Material

Gelon Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case Lithium Ion Battery



Materials:
Case and cap are made of nickel plated A3 stell
Seal O-ring and spacer are made of nylon
Insulating gasket is made of PET

CAP:
Cap with Built-in PTC Thermistor for over current protection



32650 cylinder cell cases:

Specifications
Dimensions (Dia x Height)
  • Case: 32mm(OD) x 31.5mm(ID) x 68mm(H)
  • Top Cap: 31.5mm(D) x 5.3mm(H)
Materials
  • case and cap made of Nicke plated A3 steel and seal O-ring made of nylon
Weight
  • 28.85g/pcs
Note
  • Min. order: 60 pcs per package



26650 cylinder cell cases:



Specifications
Dimensions (Dia x Height)
  • Case: 26mm(OD) x 25.5mm(ID) x 68mm(H)
  • Top Cap: 25.5mm(D) x 5mm(H)
Materials
  • case and cap made of Nicke plated A3 steel and seal O-ring made of nylon
Weight
  • 18.75 g/pcs
Note
  • Safety valve's open pressure: 2.8MPa (the cap valve will open to release interior high pressure if over 2.8MPa to ensure no explosion from the can)



18650 cylinder cell cases:



Specifications
Cap Cap with Built-in PTC Thermistor
Dimensions (Dia x Height)
  • Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)
  • Top Cap: 17.5mm(D) x 4.05mm(H)
  • Top Insulator: 12.5mm(D) x 0.19mm(H)
  • Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials
  • case and cap made of Nicke plated A3 steel and seal O-ring made of nylon
Weight 9.50 g/pcs
Note Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure if over 2.5MPa to ensure no explosion from the can)





Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case 0






Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case 1Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case 2Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case 3



Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case 4Lithium Battery Raw Material 18650 26650 21700 32650 Cylinder Cell Case 5



What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.

2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
