Full Set 18650 Cylinder Batteries Case Lithium Battery Production Line

Full Set 18650 Cylinder Batteries Case Lithium Battery Production Line
Full Set 18650 Cylinder Batteries Case Lithium Battery Production Line Full Set 18650 Cylinder Batteries Case Lithium Battery Production Line

Large Image :  Full Set 18650 Cylinder Batteries Case Lithium Battery Production Line

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Cylinder cell cases
Payment & Shipping Terms:
Minimum Order Quantity: 1000 set
Price: USD$0.75~0.85
Packaging Details: Standard packing
Delivery Time: 5~10days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000 sets per month

Full Set 18650 Cylinder Batteries Case Lithium Battery Production Line

Description
Brand: Gelon Name: Cylinder Cell Cases 18650/21700/32650
Case: 18mm(OD) X 17.5mm(ID) X 67mm(H) Materials: Nicke Plated A3 Steel
Protection: Short Circuit Protection, Over-discharging, Over-charging Lead Time: Stock Materials
High Light:

Full Set Cylinder Batteries Case

,

Lithium Battery Production Line

,

18650 Cylinder Batteries Case

Factory Price Full Set 18650 Cylinder Batteries Case Lithium Battery Production Line Using

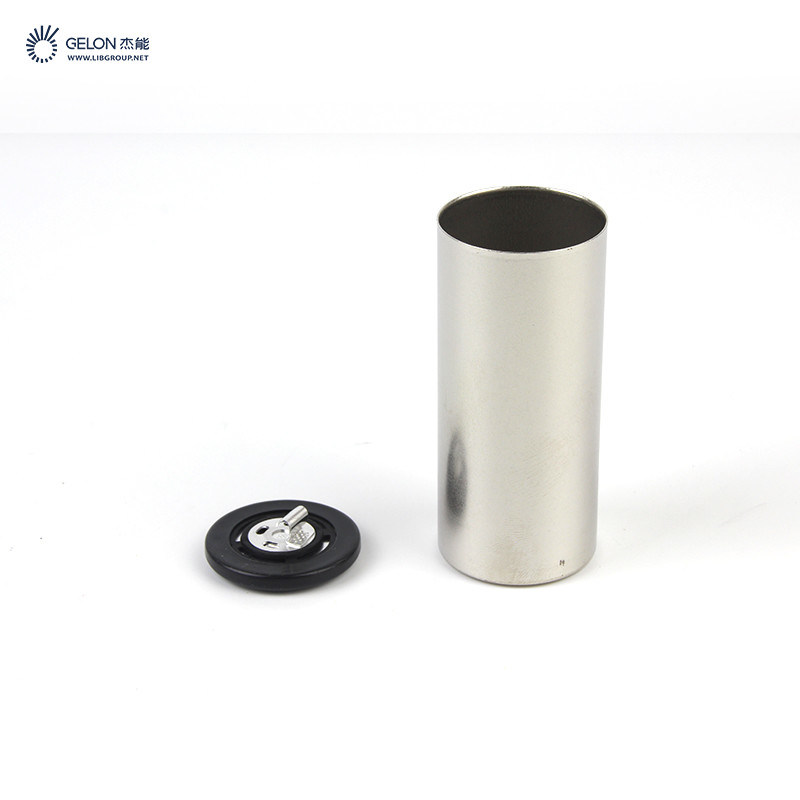

18650 Cylinder Cell Case with Anti-Explosive Cap(with PTC) and Insulation O-ring and isolators and surface mat.
Top Insulators and Bottom Insulators and Insulation surface mat are included.

Specification of 18650 26650 32650 Cylinder Battery Case/Cylinder Cell Case
Cap
Cap with Built-in PTC Thermistor for overcurrent protection
Dimensions (Dia x Height)
Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)
Top Cap: 17.5mm(D) x 4.05mm(H)
Top Insulator: 12.5mm(D) x 0.19mm(H)
Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials
Case and cap are made of Nicke plated A3 steel

Seal O-ring and spacer are made of nylon

Insulating gasket is made of PET
Weight

9.50 g/pcs
Note
Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)

18650 case's grooving and sealing machine is available upon request





Full Set 18650 Cylinder Batteries Case Lithium Battery Production Line 0

Full Set 18650 Cylinder Batteries Case Lithium Battery Production Line 1
