Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Coin cell cases
Payment & Shipping Terms:
Minimum Order Quantity: 1000 set
Price: USD$0.35~USD$1.0 per set
Packaging Details: Standard packing
Delivery Time: 5~10days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000 sets per month

In Stock Factory Price SS316 SS304 CR2016,CR2025,CR2032 CR Full Set Coin Cell Cases Laboratory Research

Description
Brand: Gelon Type: Coin Cell Cases
Material: SS304 Or SS316 Or Aluminium Sealing Gasket: PP
Lead Time: In Stock Color: Silvery White

In Stock Factory Price SS316 SS304 CR2016,CR2025,CR2032 CR Full Set Coin Cell Cases Laboratory Research

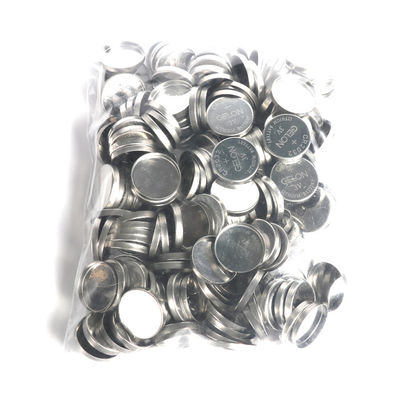

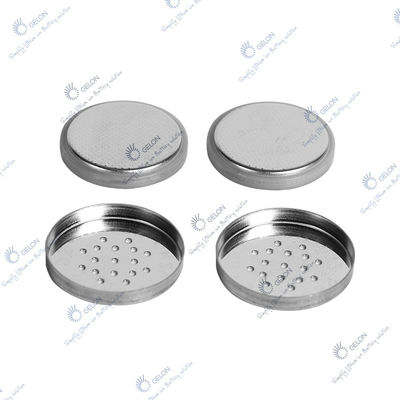

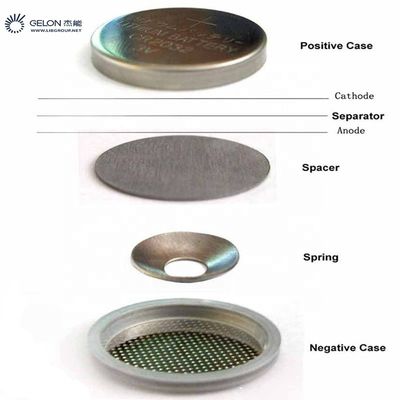

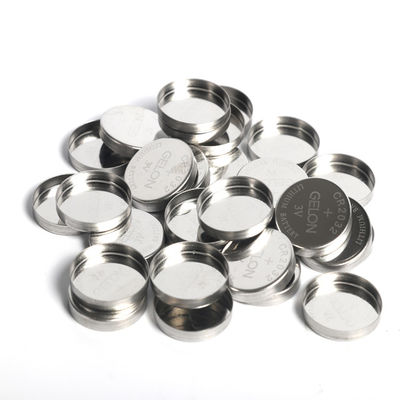

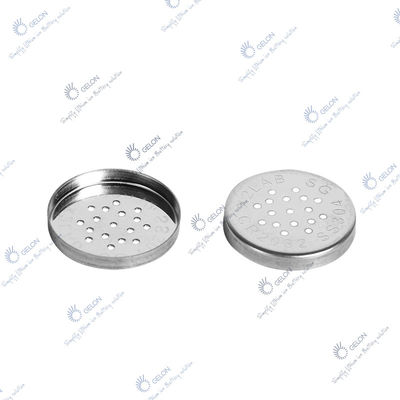

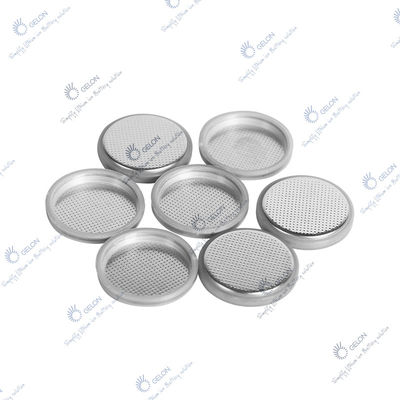

Coin cell cases is made of 304 or 316 stainless steel with sealing o-ring, include CR2016, CR2025, CR2032, CR2430, CR2450 etc;and we also have coin cell case with Aluminum coated on the inside of the positive can



CR2032 SPECIFICATIONS
Dimensions
(Dia x Height)

20mm x 3.2mm
Weight
0.12 oz
Material

*Casing: SS316

*Sealing Gasket: PP

*The thickness of the SS304 for both anode and cathode case is 0.25 mm +/- 0.02 mm.
Suggested Crimper
*The best crimper: GN-PN110-S Compact Gas Driven for consistent result

*The compact electric crimper GN-160E for easy operating at Ar gas glove box
Application Note
*After perfectly crimping, the External Height should be around 3.0mm.

*The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm.

*Usually, case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs, and use Oven to dry serval hours, (please set the oven to 30C, if it has ORING.)



We can also supply:

1.)full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Alumimun foil,copper foils,battery separator, copper foam, coin cell cases etc.
2.)full set of lithium battery equipments,for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.)full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.
