8 Channel Split Coin Cell Kit for High-Throughput R&D with Stainless Steel Contact Plate and Air-Tight Design

Large Image : 8 Channel Split Coin Cell Kit for High-Throughput R&D with Stainless Steel Contact Plate and Air-Tight Design

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-4008-5V10mA

Payment & Shipping Terms:

Minimum Order Quantity:	1/PCS
Packaging Details:	Standard Exporting Package
Delivery Time:	4-6 week
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 PCS Per Month

Contact Now

8 Channel Split Coin Cell Kit for High-Throughput R&D with Stainless Steel Contact Plate and Air-Tight Design

Description

Equipment Name:	8 Channel Split Coin Cell Kit	Electrode Diameter:	Standard 20 Mm ID
Available Upon Request:	5, 10, 12, And 15 Mm ID Versions	Working Temperature:	Max. 100 ºC
Testing Station:	Simply Align The Kit Parallel	Delivery Time:	10 Working Days After Payment Confirming
Highlight:	Lithium Ion Battery Testing System , li Battery Assembly Line , Battery Tester oem

Lithium Ion Battery Testing System

This 8-channel split coin cell kit is designed for high-throughput R&D battery material testing and screening. With this testing system, 8 split coin cells can be assembled independently with varying battery materials and tested parallelly by a multi-channel battery analyzer for efficient comparison and time savings. The split coin cell kit can be easily tightened or disassembled using a wrench, eliminating the need for a coin cell crimper and saving users both time and cost.

Structure & Features

8 separated split coin cells can be assembled independently and tested parallelly for high-throughput R&D battery material testing and screening
Works effectively with multi-channel battery analyzers for battery material comparison and time-saving
Stainless steel bottom contact plate and top plunger ensure excellent electrical conductivity
PTFE-made sealing gaskets and Nylon body provide superior resistance to electrolyte corrosion
Air-tight design ensures zero electrolyte leakage

Electrode Diameter	Standard 20 mm ID 5, 10, 12, and 15 mm ID versions available upon request
Working Temperature	Maximum 100°C

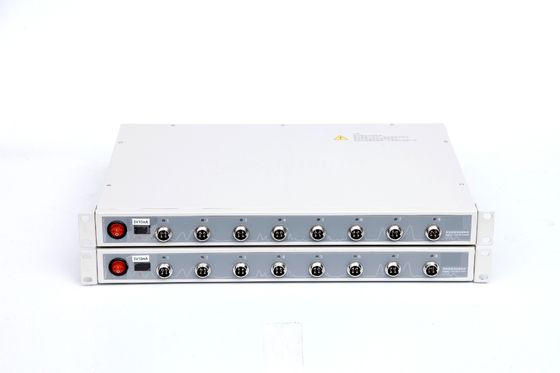

Testing Station (Optional)	To perform parallel testing for multiple cells, simply align the kit parallel with an MTI multi-channel battery analyzer and connect the cells to corresponding channels for cycle life, coulombic efficiency, and other measurements

Complete Lithium Battery Solutions

We provide a comprehensive range of lithium battery materials, equipment, and technology solutions to support your research and production needs.

Battery Materials

Full set of lithium battery materials including:
LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2
Graphite (MCMB), LiNiCoAlO2 (NCA) and other cathode & anode battery materials
Aluminum foil, copper foils, battery separator, etc.

Battery Equipment

Complete set of lithium battery equipment, for example:
Mixing machine — Coating machine — Oven — Rolling machine
Welding machine — Slitting / Cutting machine — Winding machine — Sealing machine

Technical Support

Full set of lithium battery technology
We can design laboratories and production lines according to customer requirements
