Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material

Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material
Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material

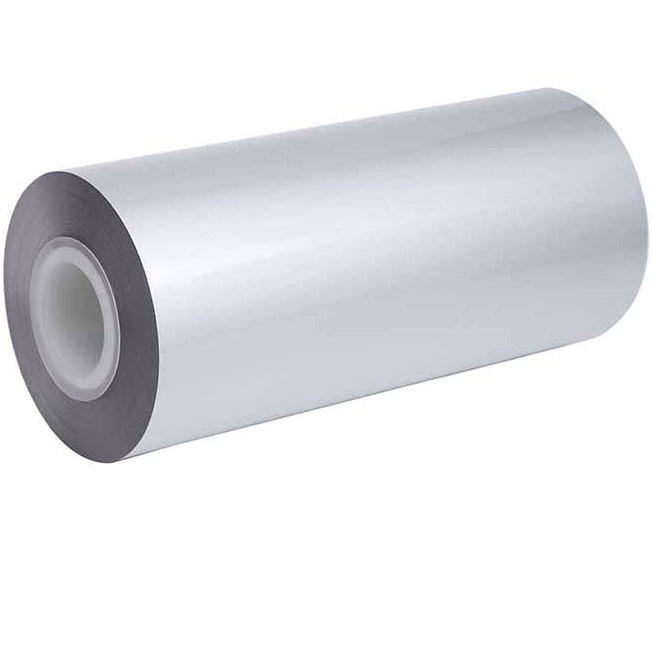

Large Image :  Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: Ce
Model Number: GN- ALF
Payment & Shipping Terms:
Minimum Order Quantity: 1㎡
Price: USD18/㎡
Packaging Details: Standard Export Packaging.
Delivery Time: 5-8work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 ㎡/Month
Contact Now

Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material

Description
Product Name: Aluminum Laminated Film Thickness: 113μm
Width: 400mm Length: 7.5m 50m
Polyamide (JIS Z1714): 0.025mm(+-0.0025mm) Aluminum Foil (JIS A8079,A8021): 0.040mm(+-0.004mm)
Molding Depth: ≥5.0mm Usage: Pouch Cell Case

Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material



1. Product Description

#Aluminum Laminated Film for Lithium Ion Battery #Pouch Cell Case Material #Laminated Aluminum Foil

Aluminum laminated film is one of the five major materials of lithium ion battery, and it is pouch lithium battery packaging material. The aluminum laminated film consists of outer nylon layer/adhesive/intermediate aluminum foil/adhesive/internal heat seal layer.
Thickness: 88micron, 113micron,153micron
Width: 400mm
Length:300meters


2. Product Parameters
Product Specifications

Material
Aluminum Laminated Film ( Shodex)
Thickness
113μm
Width
400mm
Length
Length 7.5m 50m
Material & Composition

Polyamide (JIS Z1714)
0.025mm(+-0.0025mm)
Adhesive(Polyester-polyurethane)
4-5g/ m²
Aluminum foil (JIS A8079,A8021)
0.040mm(+-0.004mm)
Adhesive (Urethane-free Adhesive)
2-3g/m²
Polypropylene
0.040mm(+-0.004mm)
Quality inspection

Surface quality
Mat finish
Pinholes
Subject to the applicable aluminum foil standard
Impurity
1mm or less in diameter
Fish eye
2mm or less in diameter(clear),1mm or less in diameter(coloured)
Molding Depth
≥5.0mm
Electrical Insulating
Good
Heat Sealing Condition
180-190°C





3. Product Details

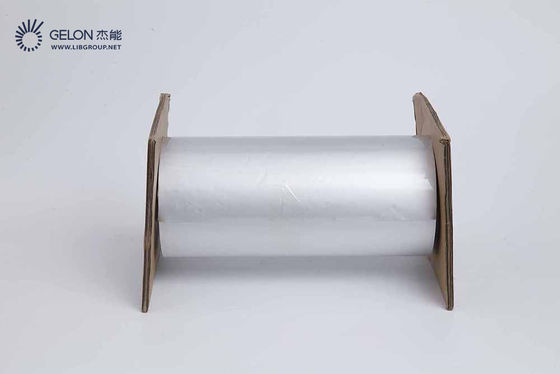

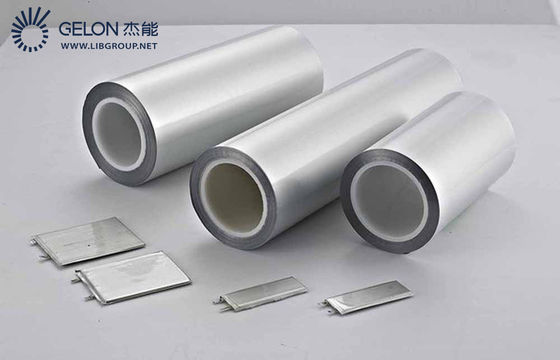

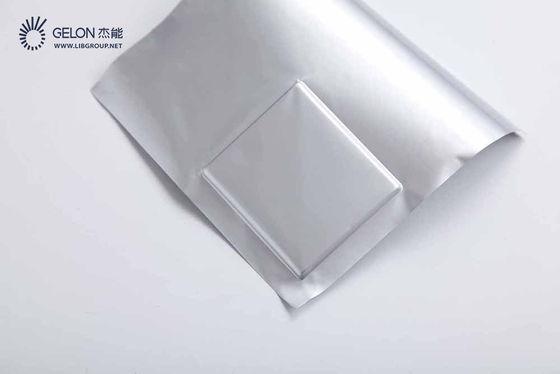

Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material 0Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material 1Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material 2





4.Related Products

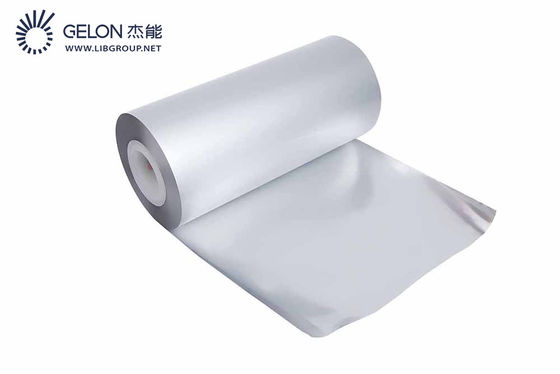

Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material 3





5.Packaging&Shipping

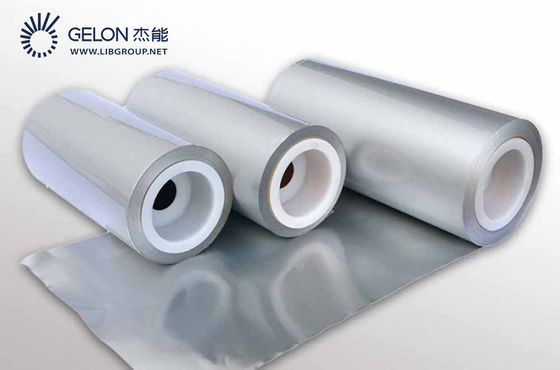

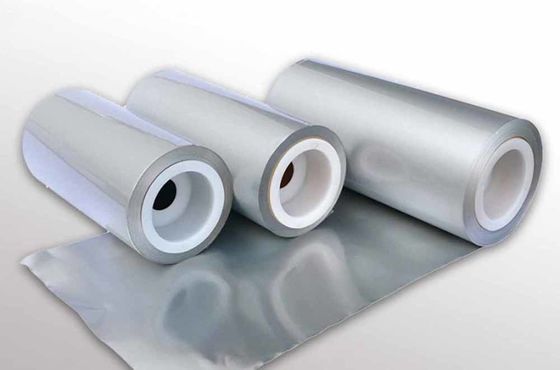

Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material 4Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material 5





6.Company Profile

Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material 6





7.FAQ

Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material 7
