Product Details:
|
| Product Name: | High And Low Temperature Chamber | Application: | For Battery High Low Temperature Test,temperature Change,humidity Etc. Environment Simulate Reliability Test. |
|---|---|---|---|
| Effective Volume: | 800L | Inner Dimension: | W1000*H1000*D800mm |
| Overall Dimension: | W1500*H1900*D1620mm | Environment Temp: | +5℃～+35℃ |
| Relative Humidity: | ≤85% | Temp. Range: | -40℃~+150℃ |
| Temp. Fluctuation: | ≤±0.5℃ | Temp. Deviation: | ≤±2.0℃ |
| Temp. Gradient: | ≤±1.0℃ | Humidity Fluctuation: | ±2％RH |

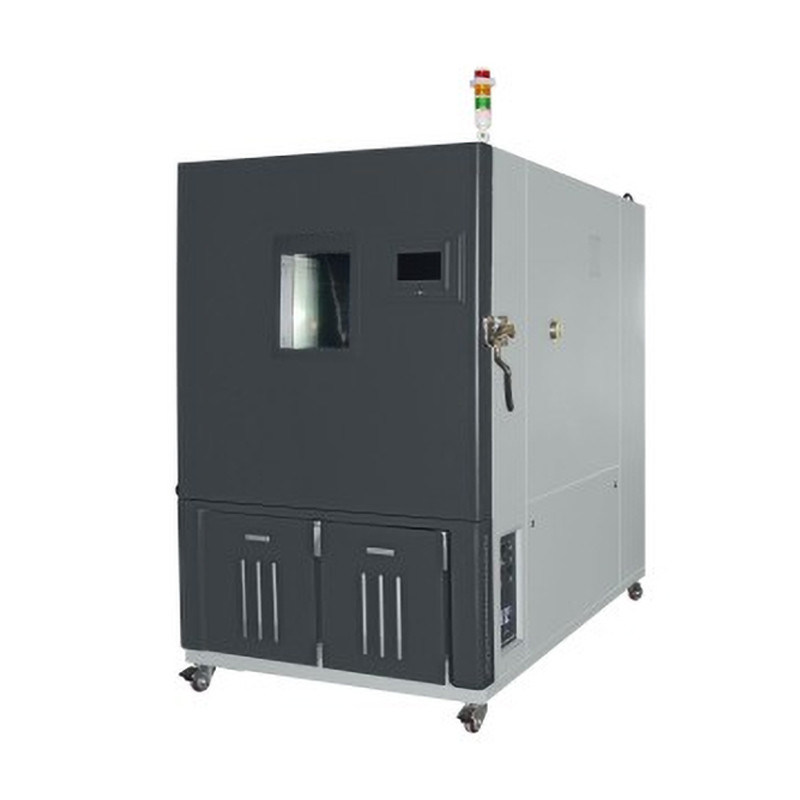

Battery Equipment High And Low Temperature Test Chamber Environment Simulate Battery Testing Lab
1. Application: This equipment mainly used for battery high low temperature test,temperature change,humidity etc. Environment simulate reliability test.
2.Standard Compliance :
IEC60068-2-1:2007 Environmental testing - Part 2: Test methods - Tests A: Cold
IEC60068-2-2:2007Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat
IEC60068-2-78:2007Environmental testing for electric and electronic products - Part 2: Testing method test Cab: Damp heat Steady state
IEC60068-2-30:2005 Environmental testing for electric and electronic products - Part 2: Test method - Test Db: Damp heat,cyclic ( 12h+12h cycle)
Operating Condition:
1. Environment Temp. : 5℃-35℃;
2.Relative Humidity: ≤85%RH;
3.Atmospheric Pressure:80kPa~106kPa
4. Away from strong vibration source
| Power | 380V,50Hz,Three phase , 14.0KW |
| Noise | ≤75dB (A class) |
| Temp. Cooling Time | About 0.75~1℃/mins,average ,non-linear ,no load |
| Temp. Heating Time | About 1~3℃ /mins,average ,non-linear ,no load |
| Humidity Deviation | ≤+2%/-3%RH (≥75%RH)；≤±5%RH (≤75%RH) |
| Humidity Uniformity | +2%/-3%RH |
| Humidity Range | 20%RH-98%RH (details see temperature humidity control diagram) |
