Product Details:
Place of Origin: china
Brand Name: Gelon
Certification: ce
Model Number: GN-8103
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD1400-5000/PCS
Packaging Details: Standard exported package : Internal anticollision protection, external export wooden box packaging.
Delivery Time: 25 working days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

Battery Equipment Thermal Abuse Test Chamber Thermal Shock Test Chamber Battery Testing Lab

Description

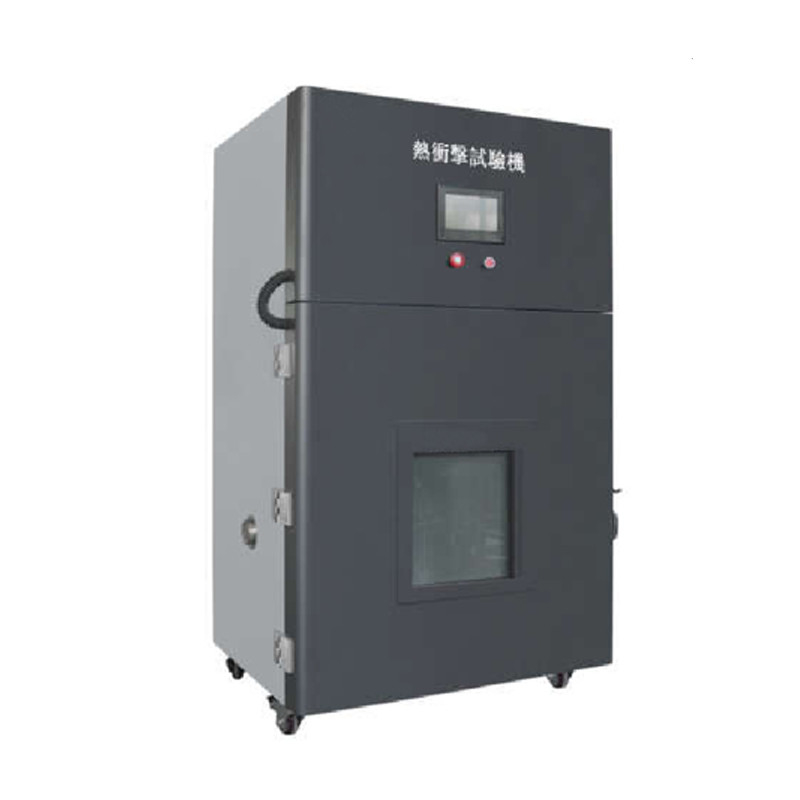

Product Name: Thermal Abuse Test Chamber Application: Mainly Applied For Industrial Products Drying, Thermal Treatment Etc
Temperature Range: Ambient Temperature~200℃ (controllable) Control Accuracy: ±0.5℃
Distribute Temp.: ±2.0℃(non-load) Temperature Rising Rate: RT~150℃(5℃±2℃/minutes)
Control Method: PLC Touch Screen Control Working Room Dimension: W600mm×D500mm×H600mm
External Dimension: W940X D780 X H1620mm Heating Power: About 3KW

Battery Equipment Thermal Abuse Test Chamber Thermal Shock Test Chamber Battery Testing Lab



Features:

  • External with SECC steel plate, powder paint treatment; Inner with SUS stainless steel.
  • High temperature resistant long axis motor.
  • Turbo-fan.
  • Silicon packing.
  • Over-temperature protection, over loading auto power cut off system.
  • Cycling system: forced flat air cycling.
  • Heating system: PID+S.S.R.
  • Temperature controller: PID micro computer control, automatic constant temperature, quick temperature compensation function.
  • Time function: when temperature reaches the setting temperature, alarm for cut off power.
  • Glass observation windows optional customize according to customer requirements.





Insulation Material High density glass wool, well insulation, best ensure the temperature insulation.
With high temperature resistant silicon seal, long time bear high temperature above 300 degree.
Inner Chamber Material SUS304mirror stainless steel,clean and smooth internal chamber, easy for
cleaning ,with high corrosion resistance performance. All internal material with
environment friendly material,inter barrel with no trace argon arc welding
Observation Window Toughened glass with bursting disk
Bottom Installed with universal wheel
External Chamber Material SECC steel plate,powder painted (thickness1.5mm)
Power Source

220V 50HZ

Standard Compliance

UN 38.3, UL 1642, IEC61960, IEC62133 ,GB31241 Testing Standard
