Product Details:
|
| Product Name: | Battery Drop Tester | Drop Height: | 300～1500mm(Controllable, Steel Ruler ,min.indication Value :1mm) |
|---|---|---|---|
| Display Accuracy: | 0.1mm | Height Deviation: | PLC Touch Screen Display Test Parameters. |
| Test Loading: | ≤5kg | Specimen Max. Dimension: | W200 X D200 X H200mm |
| Air Vent: | Diameter 100mm | Drop Floor Material: | Steel Plate (marble Plate, Wooden Plate Each 1 Piece ) |
| Chamber Doo: | Single Open Door With Observe Window, Cold-rolled Door Lock | Drop Method: | Free Fall |
| High Light: | PLC Battery Drop Tester,0.1mm accuracy Battery Drop Tester,CE Drop Tester Battery Testing Lab |
||

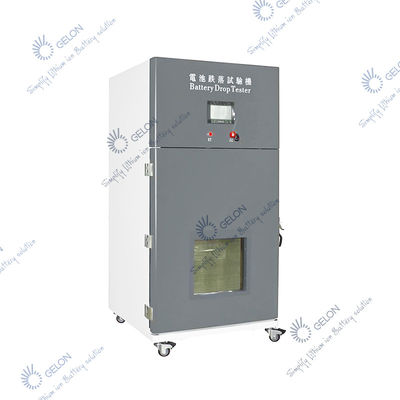

Battery Drop Tester Battery Testing Lab Battery Assembly Line
Applications :This machine applies for small consumer electronic products like mobile phone, mobile batteries, interphone, electronic dictionary ,CD/MD/MP3 etc. and components free dropping testing
| Drop method | Pneumatic dropping |
| Lifting method | Motor lifting |
| Air Source | W940 x D940 x H1900mm (please refer the final design drawing) |
| Power Source | 220V±10%, 50Hz |
| Machine Power | 1.0KW |
Equipment Features :
1 This machine available for package face, corner, edge free drop testing.
2 With height digital display instrument and tracing height with encoder, so can measure the precision drop height.
3 The drop height tolerance within2% or 10mm；
4Adopt pneumatic structure, fix the specimen with special fixture (range adjustable), push the drop button, pneumatic cylinder open, specimen free dropping . The drop height controllable, and with height steel ruler which makes drop height available. Various kinds drop floor optional. Meets different testing standards.
