PLC Touch Screen Display Battery Drop Tester with Free Fall Drop Method and Pneumatic Dropping for Battery Testing Lab

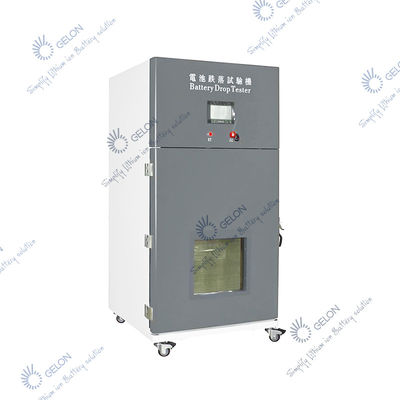

Large Image : PLC Touch Screen Display Battery Drop Tester with Free Fall Drop Method and Pneumatic Dropping for Battery Testing Lab

Product Details:

Place of Origin:	china
Brand Name:	Gelon
Certification:	ce
Model Number:	GN-8108

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	3000-8000USD
Packaging Details:	Standard exported package : Internal anticollision protection, external export wooden box packaging.
Delivery Time:	25 working days
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500pcs/month

Contact Now

PLC Touch Screen Display Battery Drop Tester with Free Fall Drop Method and Pneumatic Dropping for Battery Testing Lab

Description

Product Name:	Battery Drop Tester	Drop Height:	300～1500mm(Controllable, Steel Ruler ,min.indication Value :1mm)
Display Accuracy:	0.1mm	Height Deviation:	PLC Touch Screen Display Test Parameters.
Test Loading:	≤5kg	Specimen Max. Dimension:	W200 X D200 X H200mm
Air Vent:	Diameter 100mm	Drop Floor Material:	Steel Plate (marble Plate, Wooden Plate Each 1 Piece )
Chamber Doo:	Single Open Door With Observe Window, Cold-rolled Door Lock	Drop Method:	Free Fall
Highlight:	PLC Battery Drop Tester , 0.1mm accuracy Battery Drop Tester , CE Drop Tester Battery Testing Lab

PLC Touch Screen Display Battery Drop Tester

Product Overview

This Battery Drop Tester is designed for comprehensive battery testing in laboratory and assembly line environments. It provides reliable free-drop testing for small consumer electronic products and components.

Specification	Details
Drop Method	Pneumatic dropping
Lifting Method	Motor lifting
Dimensions	W940 x D940 x H1900mm (refer to final design drawing)
Power Source	220V±10%, 50Hz
Machine Power	1.0KW

Equipment Features

Available for package face, corner, and edge free drop testing
Digital height display instrument with encoder for precise height measurement
Drop height tolerance within 2% or 10mm
Pneumatic structure with adjustable special fixture for specimen fixation
Controllable drop height with height steel ruler for accurate measurements
Various drop floor options available to meet different testing standards

Applications

Ideal for testing small consumer electronic products including mobile phones, mobile batteries, interphones, electronic dictionaries, CD/MD/MP3 players, and various electronic components.

Product Gallery

Tag:

Contact Person: Ekain Zhang

Tel: +8618669965529

Fax: 86-0539-8067529
