Product Details:
|
| Production Name: | NMC | MOQ: | 5KG |
|---|---|---|---|
| Sample: | Yes | Warranty: | 3months-1 Year |
| Supply 1: | Lithium Ion Battery Raw Material | Supply 2: | Lithium Ion Battery Production Equipment |
| Supply 3: | Lithium Ion Solid State Battery Raw Material | Tap Density （ G/cm 3 ）: | 1.20 |
| Specific Surface Area （ ㎡ /g ）: | 0.85 | Capaci Ty: | 209.0 MAh/g |
| High Light: | 209.0 mAh/g Cathode Material,NMC811 Cathode Material,Ternary Lithium Nickel Manganese Cobalt Oxide |
||
Cathode Material Ternary Lithium Nickel Manganese Cobalt Oxide NMC811 LiNi0
The product has strong applicability, good versatility, can be widely used in all kinds of cylindrical battery , Prismatic cell, polymer battery products.
Packing:25±0.01Kg/Pack
Storage: recommend Temperature≤30 ℃ , RT≤60%
| Name | Lithium Nickel Manganese Cobalt Oxide | |

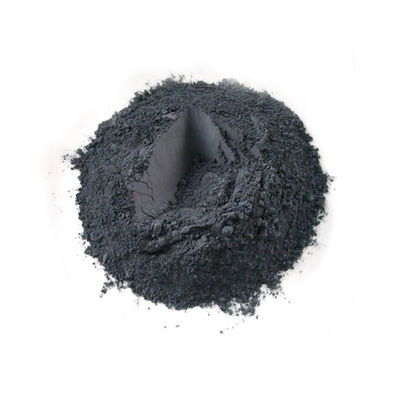

| Appearance | Black Powder | |
| Item | standard | Value |
| Tap Density ( g/cm3 ) |
1.2±0.2
|
1.20 |
| SSA(m2/g) |
0.90±0.25
|
0.85 |
| H2O (ppm) |
≤600
|
395 |
|
D10
|
1.9±0.9
|
1.56 |
|
D50
|
4.0±1.0
|
3.87 |
|
D90
|
7.5±2.5
|
8.00 |
|
D99
|
12.0±5.0
|
11.69 |
|
Li (wt% )
|
7.10±0.20
|
7.09 |
|
Ni (wt% )
|
54.00±1.50
|
53.86 |
|
Co (wt% )
|
2.90±0.50
|
2.88 |
|
Mn (wt% )
|
2.20±0.50
|
2.71 |
|
CO3 2- (wt% )
|
≤0.3500
|
2233 |
|
OH(wt% )
|
≤0.4000
|
3081 |
|
Fe(ppm)
|
≤30
|
12 |
|
Cu(ppm)
|
≤30
|
6 |
|
Na(ppm)
|
≤200
|
60 |
|
Ca(ppm)
|
≤200
|
38 |
|
Mg(ppm)
|
≤150
|
66 |
|
Zn(ppm)
|
≤20
|
1 |
|
pH
|
≤12.30
|
11.89 |
| capacity (mAh/g) |
≥207.0
|
209.0
|
| First discharge (%) |
≥86.0
|
87.6
|
We could supply one stop solution ( turn key project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
COMPANY PROFILE
Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment
Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .
Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMP,PVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive battery production experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertake lithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......;
also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....
