Long Cycle Life Lithium-Ion Battery Separator with 16μm Thickness and 35-50% Porosity PP PE Celgard3501

Large Image : Long Cycle Life Lithium-Ion Battery Separator with 16μm Thickness and 35-50% Porosity PP PE Celgard3501

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	Separator

Payment & Shipping Terms:

Minimum Order Quantity:	1000meter

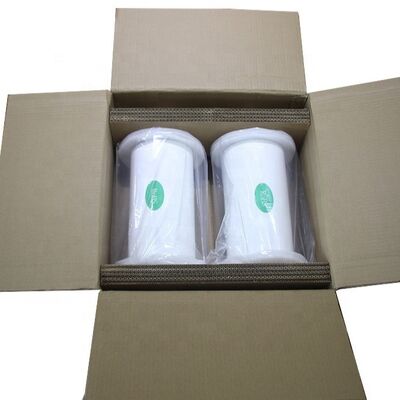

Packaging Details:	wooden box
Delivery Time:	7-10 working days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	100,000/month

Contact Now

Long Cycle Life Lithium-Ion Battery Separator with 16μm Thickness and 35-50% Porosity PP PE Celgard3501

Description

Separator PP PE Celgard3501 As Lithium-Ion Battery Accessory with Long Cycle Life PP PE Separator

Lithium Ion Battery Super Capacitor PP/PE/PP composite separator

Product Specifications

Parameter	Value
Appearance	White to beige film
Thickness	16μm +/- 1.5μm
Width	60.5mm
Polyethylene Membrane Thickness	12μ
Porosity	35-50 %
Puncture strength	≥450 g
Thermal shrinkage rate (90°C•1h) - MD	≤2 %
Thermal shrinkage rate (90°C•1h) - TD	≤0.5 %
Tensile strength - MD	≥1000kgf/cm²
Tensile strength - TD	≥1000kgf/cm²

Additional Products & Services

Full set of lithium battery materials, including: LiMn₂O₄, LTO, LiNiMnCoO₂ (NMC), LiCoO₂, Graphite (MCMB) and other cathode & anode battery materials; Aluminum foil, copper foils, battery separator, etc.
Full set of lithium battery equipment, for example: mixing machine, coating machine, oven, rolling machine, welding machine, slitting/cutting machine, winding machine, sealed machine, etc.
Full set of lithium battery technology - we can design the laboratory and production line according to customer's request.
