Name: Carbon Coated Copper Foil for Lithium Ion Battery Anode Current Collector
Brand: Shandong Gelon Lib Co., Ltd
SKU: GN-Carbon Coated Copper Foil
Price: 110 USD
Availability: InStock

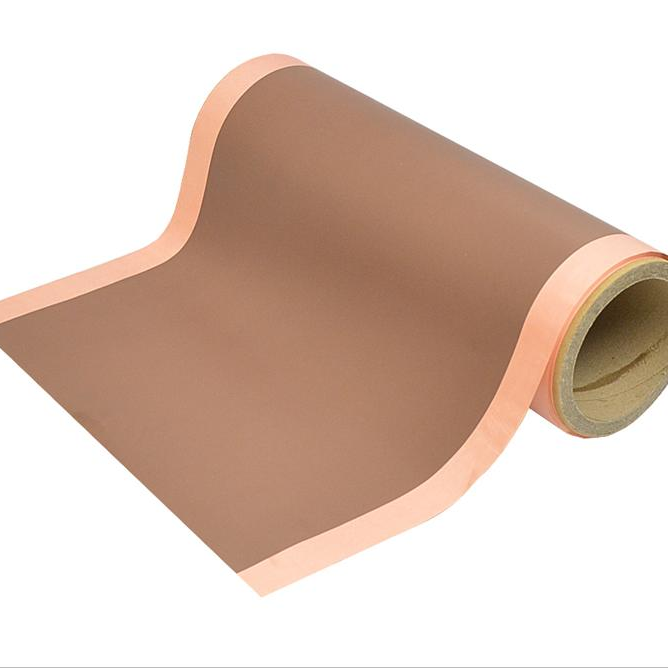

Carbon Coated Copper Foil for Lithium Ion Battery Anode Current Collector

Large Image : Carbon Coated Copper Foil for Lithium Ion Battery Anode Current Collector

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	ISO9001
Model Number:	GN-Carbon Coated Copper Foil

Payment & Shipping Terms:

Minimum Order Quantity:	1 Roll
Price:	USD 110/Roll
Delivery Time:	15 work days
Payment Terms:	T/T

Contact Now

Carbon Coated Copper Foil for Lithium Ion Battery Anode Current Collector

Description

Material:	Copper	Product Name:	Carbon Coated Copper Foil
Thickness:	10μm / 12μm / 16μm	Width:	160mm / 230mm / 260mm
Purity:	≥99.9%	Coating Type:	Double-sided Carbon Coating
Coating Surface Density:	1.2±0.2 G/m²	Surface Tension:	≥50 Dyne/cm
Application:	Lithium Ion Battery Anode

Product Overview

Carbon coated copper foil is used as anode current collector material for lithium ion batteries. The conductive carbon coating improves adhesion performance, reduces interface resistance and enhances cycle stability.

Features

High purity copper substrate
Uniform double-sided carbon coating
Excellent coating adhesion
Strong resistance to NMP wiping
Stable mechanical strength
Suitable for battery electrode manufacturing

Application

Suitable for:

Lithium ion battery anode production
Energy storage battery
EV battery
Laboratory and pilot line applications

Carbon Coated Copper Foil for Lithium Ion Battery Anode Current Collector 0
