Double-sided Carbon Coated Copper Foil for Lithium Ion Battery Anode with High Purity Copper Substrate

Name: Double-sided Carbon Coated Copper Foil for Lithium Ion Battery Anode with High Purity Copper Substrate
Brand: Shandong Gelon Lib Co., Ltd
SKU: GN-Carbon Coated Copper Foil
Price: 110 USD
Availability: InStock

All Products

Pouch Cell Assembly Equipment
(84)

Pouch Cell Battery Assembly
(42)

Pouch Cell Pilot Line
(40)

Battery Manufacturing Machine
(63)

Battery Production Equipment
(74)

Battery Testing Lab
(17)

Battery Assembly Machine
(42)

Coin Cell Assembly Machine
(16)

Coin Battery Research
(21)

Lithium Battery Research
(32)

Li Ion Battery Research
(13)

Prismatic Cell Assembly
(13)

Battery Testing Equipment
(14)

Lithium Ion Battery Materials
(83)

Best Products

LFP Lithium Ion Battery Cathode Raw Materials LMFP Manganese Ion Phosphate Battery Powder LiFePO4

NCM622 NCM811 Battery Cathode Powder Lithium Nickel Manganese Cobalt Oxide

Lithium Ion Battery Raw Material Lithium Ion Powder Battery Cathode Anode Materials

Certification

I'm Online Chat Now

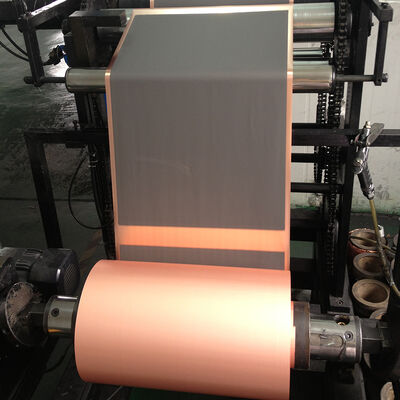

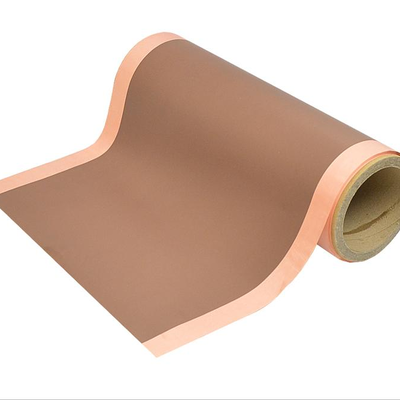

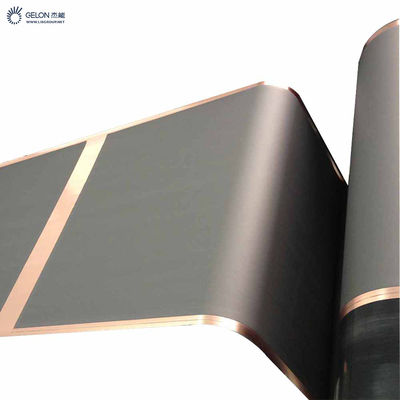

Double-sided Carbon Coated Copper Foil for Lithium Ion Battery Anode with High Purity Copper Substrate

Large Image : Double-sided Carbon Coated Copper Foil for Lithium Ion Battery Anode with High Purity Copper Substrate

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	ISO9001
Model Number:	GN-Carbon Coated Copper Foil

Payment & Shipping Terms:

Minimum Order Quantity:	1 Roll
Price:	USD 110/Roll
Delivery Time:	15 work days
Payment Terms:	T/T

Contact Now

Double-sided Carbon Coated Copper Foil for Lithium Ion Battery Anode with High Purity Copper Substrate

Description

Material:	Copper	Product Name:	Carbon Coated Copper Foil
Thickness:	10μm / 12μm / 16μm	Width:	160mm / 230mm / 260mm
Purity:	≥99.9%	Coating Type:	Double-sided Carbon Coating
Coating Surface Density:	1.2±0.2 G/m²	Surface Tension:	≥50 Dyne/cm
Application:	Lithium Ion Battery Anode

Carbon Coated Copper Foil for Lithium Ion Battery Anode Current Collector

Product Overview

Carbon coated copper foil is used as anode current collector material for lithium ion batteries. The conductive carbon coating improves adhesion performance, reduces interface resistance and enhances cycle stability.

Features

High purity copper substrate
Uniform double-sided carbon coating
Excellent coating adhesion
Strong resistance to NMP wiping
Stable mechanical strength
Suitable for battery electrode manufacturing

Applications

Lithium ion battery anode production
Energy storage battery
EV battery
Laboratory and pilot line applications

Product Images
