Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles

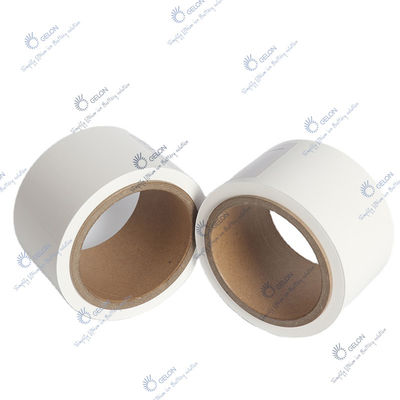

Large Image : Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles

Product Details:

Place of Origin:	CHINA
Brand Name:	GELON
Model Number:	GN-S300A

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	standard case
Delivery Time:	5-10days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000000㎡ per month

Contact Now

Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles

Description

Brand Name:	Gelon	Thickness:	5um To 25um Customize
Material:	PE /PE Or Multi Layers	Width:	Customize
Application:	Electric Vehicles, Electric Power Systems, Solar Energy Storage	Appearance:	White
MD Tensile Strength:	≥150	Warranty:	3 Months ~ 1 Year

Gelon Battery Raw Materials - 20μm Lithium Ion Battery Separator

PE & PP separators are designed for lithium-ion battery manufacturers and researchers. These polymer film materials, based on either Polypropylene (PP) or Polyethylene (PE), feature micro and nano pores that provide excellent ion transportation capabilities within lithium-ion batteries.

Available in ceramic-coated varieties for enhanced thermal deformation resistance and mechanical strength.

Technical Specifications

No.	Test Term	Unit	Inspection Value
1	Thickness	micron	20.0±2.0
2	Surface density	g/㎡	17.0±2.0
3	Ceramic layer Surface density	g/㎡	8.0±1.5
4	Gas permeability	Sec/100ml	250±40
5	Gas permeability increment	%	≤15%
6	Puncturing Strength	gf	≥580
7	120℃ *1h shrinking percentage (MD)	%	≤2.0
8	120℃ *1h shrinking percentage (TD)	%	≤1.5
9	Tensile strength (MD)	Mpa	≥150
10	Tensile strength (TD)	Mpa	≥135
11	Tensile Elongation (MD)	%	≥50
12	Tensile Elongation (TD)	%	≥50
13	Film close temperature	℃	≤135
14	Width	mm	-
15	Length	m	-
16	Peel strength	N/m	≥40
17	Static electricity	KV	≤2.0
18	Water content	ppm	≤1200

Packaging & Delivery

To better ensure the safety of your goods, we provide professional, environmentally friendly, convenient and efficient packaging services.
