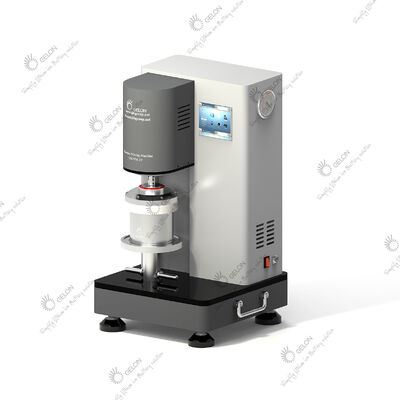

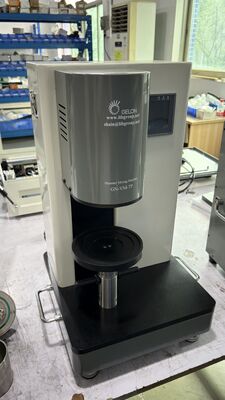

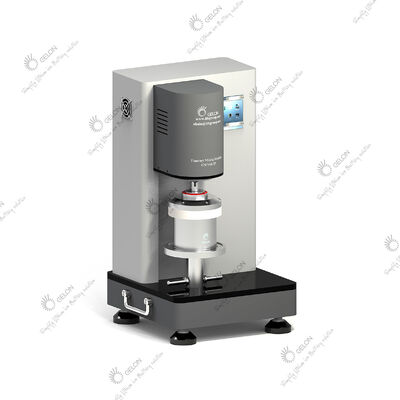

Planetary Mixing Machine with PLC Automatic Control and 1,000 RPM for Lithium Battery Slurry with Built-in Vacuum Generator

The GN-VM-7P Planetary Mixing Machine is designed for uniform mixing of various solvents and powders in slurry preparation processes. It is suitable for applications such as lithium-ion battery raw material batching, tapes, solar energy and chemical industries.

The machine features PLC automatic control and a touch-screen HMI, allowing operators to easily set and monitor mixing parameters. Forward and reverse mixing, multi-speed operation and an integrated vacuum system help achieve uniform slurry mixing and effectively remove bubbles generated during the mixing process.

• Planetary mixing system for high-viscosity slurry
• Forward and reverse mixing functions
• Multi-speed mixing with three programmable speed segments
• Maximum mixing speed up to 1,000 RPM
• Built-in vacuum generator with vacuum degree of ≥ -70 kPa
• Mixing time adjustable from 0-600 minutes
• PLC and touch-screen control system
• Optional mixing tank volumes
• Suitable for use inside a glove box
• Compact laboratory design
• 1-year warranty with lifetime maintenance

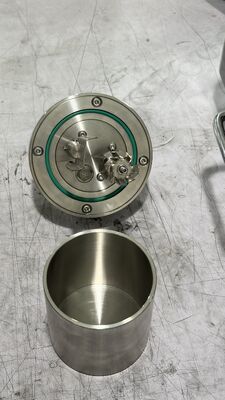

Different tank sizes are available according to the application:

• 50 ml tank — effective volume up to 30 ml, single-paddle mixing

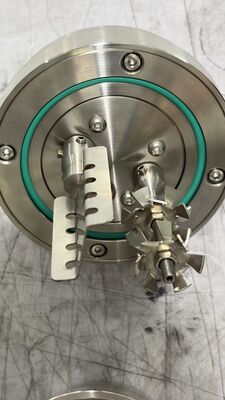

• 150 ml tank — effective volume up to 120 ml, double-paddle mixing
• 500 ml tank — effective volume up to 400 ml, double-paddle mixing

Only one tank specification is supplied as standard; other configurations can be selected according to requirements.

The planetary mixing machine can be used for:

• Lithium-ion battery slurry preparation
• Battery material mixing
• Tape material mixing
• Solar energy material processing
• Chemical material mixing
• Laboratory and pilot-scale research
