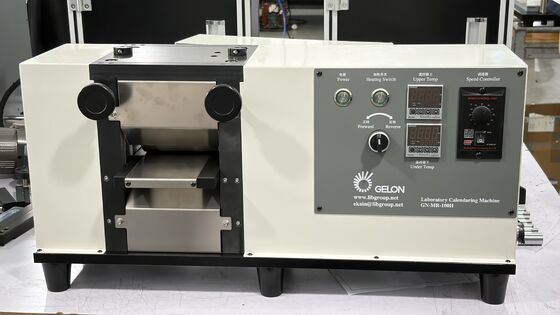

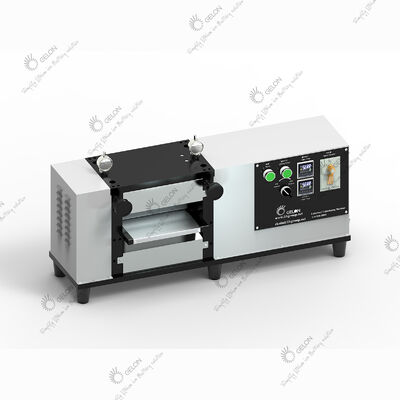

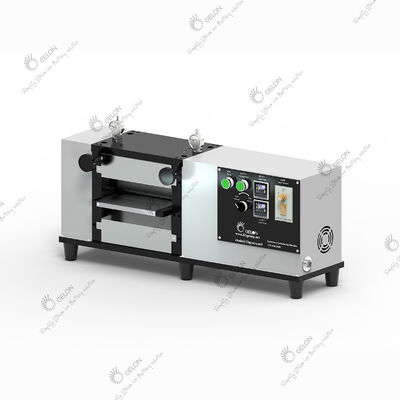

Laboratory Calendering Machine with Adjustable Roller Gap 0-1.2 mm and Hard Chrome-Plated Rollers for Lithium Battery Electrodes, Glove Box Compatible

Laboratory Calendering Machine with Adjustable Roller Gap 0-1.2 mm and Hard Chrome-Plated Rollers for Lithium Battery Electrodes, Glove Box Compatible
Laboratory Calendering Machine with Adjustable Roller Gap 0-1.2 mm and Hard Chrome-Plated Rollers for Lithium Battery Electrodes, Glove Box Compatible Laboratory Calendering Machine with Adjustable Roller Gap 0-1.2 mm and Hard Chrome-Plated Rollers for Lithium Battery Electrodes, Glove Box Compatible Laboratory Calendering Machine with Adjustable Roller Gap 0-1.2 mm and Hard Chrome-Plated Rollers for Lithium Battery Electrodes, Glove Box Compatible

Large Image :  Laboratory Calendering Machine with Adjustable Roller Gap 0-1.2 mm and Hard Chrome-Plated Rollers for Lithium Battery Electrodes, Glove Box Compatible

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2750 USD — 3355 USD
Delivery Time: 30-45 working days
Payment Terms: T/T
Contact Now

Laboratory Calendering Machine with Adjustable Roller Gap 0-1.2 mm and Hard Chrome-Plated Rollers for Lithium Battery Electrodes, Glove Box Compatible

Description
Size: Customizable Testing Speed: 0.5 Seconds
Voltage Measurement Range: 0-5V, Minimum Resolution: 1mA Frequency Range: 1～4000Hz
Delivery Set: 1 Carton Powersupply: AC 110V/220V, 50/60Hz
Machinery Capacity: 4000bph Overall Dimension: W1500*H1900*D1620mm
Core Components: PLC, Engine, Motor, Pump Warranty: 1 Year
External Dimension: W940X D780 X H1620mm Body: Inner Diameter 13mm
Color: White Electric Source: 220V±10% 50Hz
Voltage: AC220V，50HZ，Power≤20W
Highlight:

Adjustable roller gap Laboratory Calendering Machine

,

Hard chrome-plated rollers Lithium Battery Electrode Calender

,

Glove box compatible Electrode Rolling Machine

Laboratory Calendering Machine for Lithium Battery Electrode Rolling and Compacting
Laboratory Calendering Machine for Lithium Battery Electrodes

The GN-MR-200H Laboratory Calendering Machine is designed for the electric rolling and compacting of lithium battery electrode materials, including anode and cathode materials, as well as non-ferrous metals such as copper and aluminum.

It is particularly suitable for laboratory research and development where electrode materials need to be thinned and compacted to increase material density. The machine uses a gear drive system and motor-driven rollers with adjustable roller gap and rolling speed, supporting both forward and reverse rolling operations.

Key Features
  • Designed for lithium battery anode and cathode electrode calendering
  • Suitable for copper and aluminum materials
  • Adjustable roller gap from 0-1.2 mm
  • High adjustment accuracy of 0.01 mm
  • Adjustable rolling speed
  • Forward and reverse rolling operation
  • Upper and lower rollers with independent temperature control
  • Recommended roller heating temperature: 60-80°C
  • Maximum roller heating temperature: 100°C
  • Hard chrome-plated rollers with high hardness and good rust resistance
  • Motor-driven gear transmission system
  • Suitable for operation in an argon atmosphere
  • Can be used inside a glove box
Technical Specifications
Item Specification
Model GN-MR-200H
Roller Diameter Φ96 mm
Roller Width 200 mm
Effective Roller Width 195 mm
Roller Gap 0-1.2 mm
Gap Adjustment Accuracy 0.01 mm
Recommended Heating Temperature 60-80°C
Maximum Heating Temperature 100°C
Rolling Speed Adjustable
Roller Drive Motor Driven
Power 2,200 W
Power Supply AC220V/50Hz, 110V/60Hz
Equipment Dimensions Approx. 830×260×415 mm
Net Weight Approx. 94 kg
Gross Weight Approx. 114 kg
Warranty 1 year
Applications
  • Lithium-ion battery electrode research
  • Anode and cathode electrode calendering
  • Electrode thickness reduction
  • Electrode density improvement
  • Copper foil rolling
  • Aluminum foil rolling
  • Battery material laboratory research and development
Glove Box Compatibility

The machine can be used inside a glove box. Before installation, please verify that the internal dimensions of the glove box are compatible with the equipment dimensions.

Warranty
1-year warranty and lifetime maintenance.
