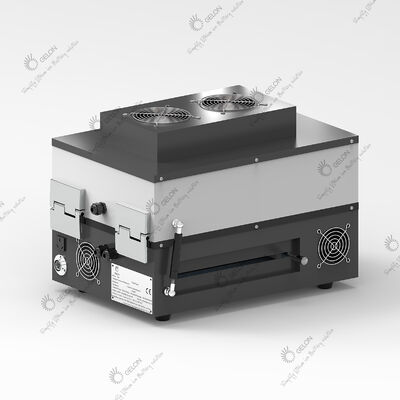

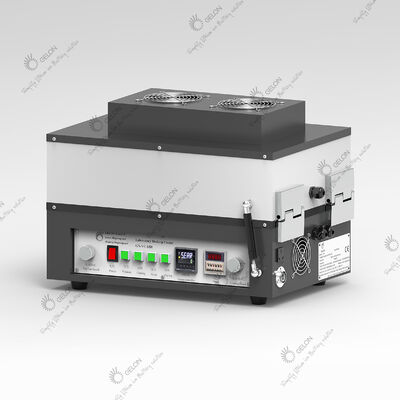

Laboratory Battery Electrode Coating Machine with Precision Adjustable Coating Thickness and Top and Bottom Independent Heating

Laboratory Battery Electrode Coating Machine with Precision Adjustable Coating Thickness and Top and Bottom Independent Heating
Laboratory Battery Electrode Coating Machine with Precision Adjustable Coating Thickness and Top and Bottom Independent Heating Laboratory Battery Electrode Coating Machine with Precision Adjustable Coating Thickness and Top and Bottom Independent Heating

Large Image :  Laboratory Battery Electrode Coating Machine with Precision Adjustable Coating Thickness and Top and Bottom Independent Heating

Product Details:
Place of Origin: China
Brand Name: Gelon
Model Number: GN-VC-10H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3751 USD - 3933 USD
Delivery Time: 30-45 working days
Payment Terms: T/T

Laboratory Battery Electrode Coating Machine with Precision Adjustable Coating Thickness and Top and Bottom Independent Heating

Description
Coating Methode: Slot Die Coating Application: Pouch Cell Battery Assembly
Forming Pressure: Max. 1T Cutting Size: Max.L 120*W 80mm
Head Temperature: 200℃ For Upper And 180℃ For Lower Heads Sealing Length: Max.250mm
Sealing Width: 5mm Productivity: 600EA/H(according Worker's Experience)
Battery: Pouch Cell Or Prismastic Cell Production Name: Semi-auto Winding Machine
Heat Sealing Pressure: 0~7kg/Cm2 Adjustable Electrical Supply: Three- Phases380V
Voltage: AC220/50HZ Side Sealing Time: Advice 3~4s
Powersupply: 220V/380V, 50/60Hz
Highlight:

Precision Adjustable Coating Thickness Laboratory Battery Electrode Coating Machine

,

Top and Bottom Independent Heating Desktop Coating Machine

,

Vacuum Suction Plate Battery Electrode Coater

Laboratory Battery Electrode Coating Machine for Lithium Ion Battery
Laboratory Battery Electrode Coating Machine

The GN-VC-10H Laboratory Desktop Coating Machine is designed for laboratory-scale coating of battery electrode materials. The machine uses a precision adjustable film applicator and micrometer adjustment system to control coating thickness. A motorized push rod moves the applicator at a constant speed to achieve uniform slurry coating on the substrate.

It is especially suitable for laboratory preparation and testing of lithium battery positive and negative electrode materials.

Key Features
  • Designed for laboratory battery electrode coating
  • Suitable for lithium battery positive and negative electrode materials
  • Precision micrometer adjustment for coating thickness
  • Constant-speed coating operation
  • Standard coating width of 100 mm
  • Adjustable coating thickness from 0.01 - 3.5 mm
  • Film applicator accuracy of 0.02 mm
  • Top and bottom independent heating control
  • Digital temperature display and temperature control
  • Digital timer for adjustable drying time
  • Vacuum suction plate for stable substrate positioning
  • Suitable for use inside a glove box
Technical Specifications
Item Specification
Model GN-VC-10H
Equipment Type Laboratory Desktop Coating Machine
Application Lithium Battery Electrode Coating
Standard Coating Width 100 mm
Coating Thickness Range 0.01-3.5 mm
Film Applicator Accuracy 0.02 mm
Vacuum Degree ≥ -84 kPa
Vacuum Suction Plate 100 × 300 mm
Heating Mode Top and Bottom Heating
Recommended Temperature 80°C
Maximum Temperature 150°C
Vacuum Pump Capacity ≥13 m³/h
Power 1300 W
Power Supply AC220V/50Hz, 110V/60Hz
Net Weight Approx. 46 kg
Gross Weight Approx. 70 kg
Warranty 1 Year

The standard vacuum suction plate is 100 × 300 mm with 153 pores, and other sizes can be customized according to customer requirements.

Vacuum and Gas Supply

The equipment can be used with argon or nitrogen at 0.5 - 0.8 MPa, or with 0.7 MPa compressed air. When used inside a glove box, compressed air is not recommended.

Applications
  • Lithium-ion battery electrode coating
  • Positive electrode slurry coating
  • Negative electrode slurry coating
  • Battery material laboratory research
  • Electrode preparation and testing
  • Laboratory and glove-box applications
Optional Accessories

A viscometer can be optionally used to control slurry viscosity for more consistent coating results. After coating, a vacuum oven may be used for drying, while a roller press can be used to improve the contact between the coated electrode material and collector substrate.

Warranty

1-year warranty.
