Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine

Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine
Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine

Large Image :  Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine

Product Details:
Place of Origin: Shandong, China
Brand Name: GELON
Certification: CE
Model Number: CN- Pouch Cell Assembly Line Equipments
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 9250-15000/set
Packaging Details: Standard Export Package
Delivery Time: 7-45 sky
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99/set/moon
Contact Now

Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine

Description
Product Name: Roll To Roll Slot Die Coating Machine For Battery Power Supply:: AC 110-220V ,50/60HZ
Coating Speed:: 0-10mm/sec Coating Thickness:: 80-400um
Thickness Of Copper Foil:: 0.008-0.030mm Thickness Of Aluminum Foil:: 0.012-0.030mm
Width Of Basic Foil:: 150mm Outer Diameter Of Foil:: 100mm
Weight (KG): 100 Applicable Industries:: Lithium Ion Battery Making
Dimension(L*W*H):: 1610mm*580mm*530mm Brand Name:: GELON
Power:: 1.7kw Warranty Of Core Components: 1 Year
High Light:

Lithium Battery Research battery coater

,

slot die lab coating machine

,

Lithium Battery Research 1.7kw

Product Description





150 Type Lab Roll to Roll Slot Die Coating Machine
GN-5ZD-150
GN-5ZD-150 roll-to-roll extrusion experimental coating machine adopts extrusion + blade coating method. The equipment is mainly composed of extrusion die, coating platform, feeding system, friction disc unwinding, motor winding, etc. It is mainly used in
laboratory research and development.
This equipment is mainly used for the surface coating of sheet substrates in the fields of lithium OLED, solar photovoltaic film and polymer conductive film, etc.

Feature:
1. Adopt slot die + doctor blade coating process, high coating precision and good consistency;
2. Syringe pump feeding, the feeding system is closed, no external interference, less paint demand and waste;
3. Circulating hot air drying and heating, digital display temperature control, the maximum working temperature is 130 ℃;
4. The coating speed can be adjusted in the range of 0~10mm/s;
5. Extrusion coating thickness accuracy ±2um;
6. Automatic winding and unwinding;
7. The coating mold and feeding system are easy to disassemble and clean;
8. Touch screen operation, equipment parameter adjustment, storage and control are convenient and quick.
Power
1.7kw
Dry temperature
Room temperature-130℃
Coating thickness
80-400um
Speed
0-10mm/sec
Coating accuracy
2um
Max coating width
100mm
Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine 0

Gelon LIB Group was set up as a manufacturer and exporter in 2007, dealing with lithium ion battery materials, equipments,production line,etc.

Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery ,
Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR, CMC ,NMP PVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.

Based on our extensive battery production experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and undertake lithium ion battery project design, construction&training.

By now, Gelon group have finished projects in Bolivia,Indonesia, Indian,Russia, United Kingdom,Turkey, Argentina,Thailand , South Africa and etc.

We have accumulated 15+ years experiences on lithium battery raw material production, battery manufacturing and equipment production. With our extensive experience and knowledge, we can provide our customers not only the premium products, but also the most professional service and technical support.

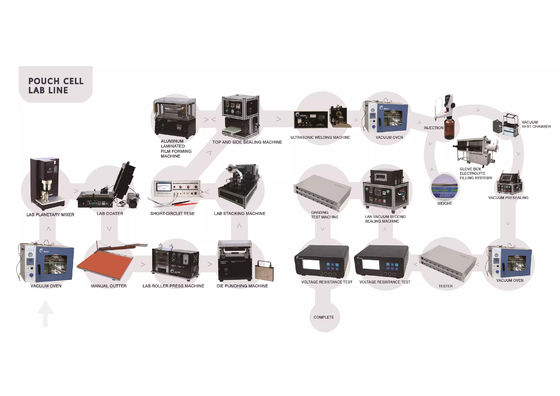

Lab cell production line
Volatage and Capacity Can be Customzied
Cylinder cell production line
Volatage and Capacity Can be Customzied
Pouch cell production line
Volatage and Capacity Can be Customzied
Automatic production line
Volatage and Capacity Can be Customzied








Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment
Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....
Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine 1
Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine 2Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine 3

Gelon Automatic Pouch Cell Production Line :

Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine 4

Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine 5

Lab Coating Machine Lithium Battery Research Roll To Roll Slot Die Coating Machine 6
