Product Details:
Place of Origin: Shandong, China
Brand Name: GELON
Certification: CE
Model Number: CN-Cylinder Cell Lab Equipments
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 1000-3970/set
Packaging Details: Standard export wooden box of Lithium Ion Cylinder Battery Tabs Laser Welding Machine Cylinder Cell Tab Laser Welder
Delivery Time: 7-45 sky
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99/set/moon

Cylinder Battery Tab Welding Machine Lithium Battery Research Cylinder Cell Tab Laser Welder

Description
Product Name: Lithium Ion Cylinder Battery Tabs Laser Welding Machine Laser Welder Max. Output Power: 300w
Single Pulse Energy: 300W Wavelength: 1064nm
Pulse Width: Pulse Width Focal Spot Diameter: 1064NM
Laser Head: 36mm Series Function: Battery Cap Welding
Application: Cylinder Cell, Power Cell,Prismatic Cell Warranty: 1 Year
Brand Name: GELON Weight (KG): 350
High Light:

lithium battery research 300W

,

Cylinder battery tab welding machine

,

1064nm lithium battery research

Product Description

Lithium Ion Cylinder Battery Tabs Laser Welding Machine Cylinder Cell Tab Laser Welder

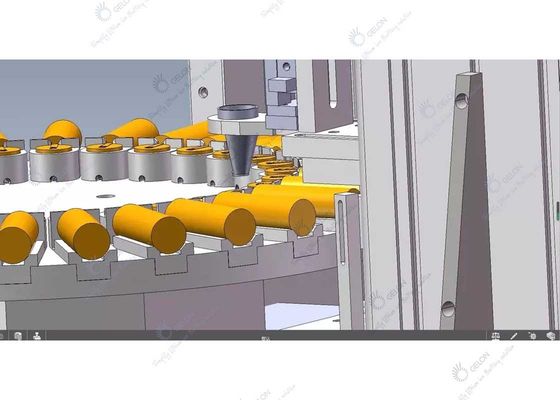

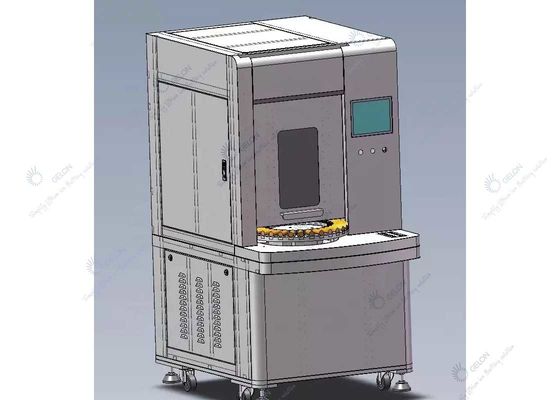

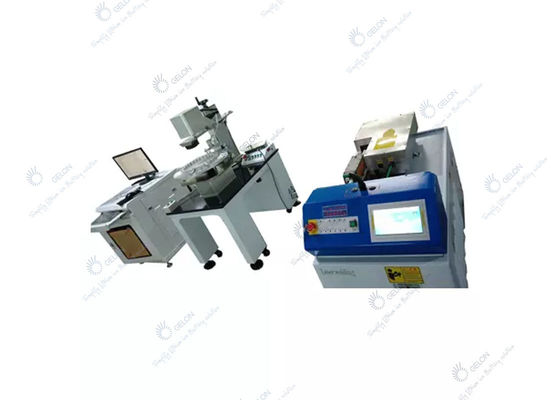

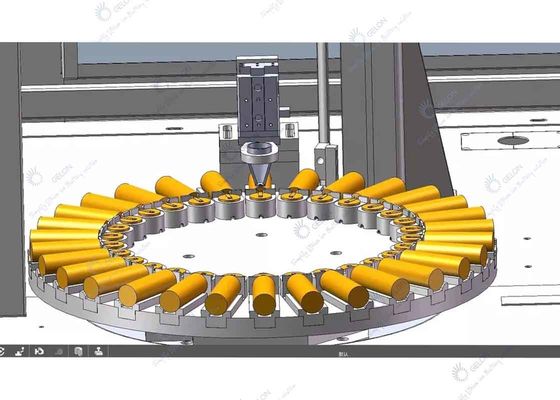

GN-W300Y-SC-MT laser welding machine is a system integration equipment integrating light, machine and electricity, mainly used for the welding of cylinder cells’ cap and tab.
The equipment runs stably and reliably. The core laser is a 300W pulsed YAG laser developed by our company. It has good processing quality, high efficiency, high-precision linear workbench, simple operation and convenient maintenance.


Using self-developed GN-W300Y-SC-MT pulsed laser, the fiber core diameter is 400µm, the length is 5 meters, the energy conversion efficiency is ≥3%, the host power is 10KW, the water cooler is 3KW, the single-point pulse laser energy is large, and the heat affected area is small.

Power
380V±5%, ≤ 10KW
Average output power
≤ 300 W
Laser pulse width
0.5~10ms, adjustable in sections
Repetition frequency
1~150Hz adjustable in sections
Spot diameter
0.6~1.0ms
Power conversion efficiency
>90%
Overall conversion efficiency
>4 %
Continuous output energy instability
±1.5%
Continuous working time
≥24h
Service life of pulsed xenon lamp
≤10,000,000 times
Xenon lamp power
>6.0KW
Lab cell production line
Volatage and Capacity Can be Customzied
Cylinder cell production line
Volatage and Capacity Can be Customzied
Pouch cell production line
Volatage and Capacity Can be Customzied
Automatic production line
Volatage and Capacity Can be Customzied







Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment
Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....
