Electrode Coating Machine Li Ion Battery Pack

Electrode Coating Machine Li Ion Battery Pack
Electrode Coating Machine Li Ion Battery Pack Electrode Coating Machine Li Ion Battery Pack Electrode Coating Machine Li Ion Battery Pack Electrode Coating Machine Li Ion Battery Pack Electrode Coating Machine Li Ion Battery Pack

Large Image :  Electrode Coating Machine Li Ion Battery Pack

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE

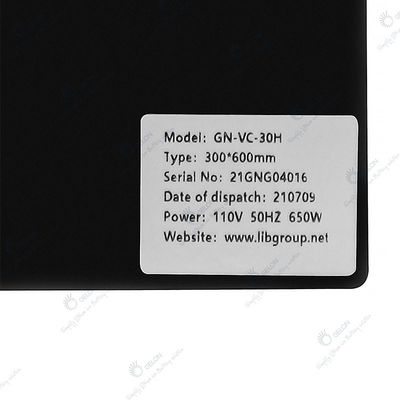

Model Number: GN-VC-30H
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $5900-$8500/set
Packaging Details: Standard wooden box for export.
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 50 sets per month

Electrode Coating Machine Li Ion Battery Pack

Description
Production Name: Pouch Cell Assembly Equipments Lab Desktop Coating Mahcine Usage: Lithium Ion Battey Research And Production
MOQ: 1 Pc Customzie: YES
Shipping: By Sea/Air/Express/Land Supply: Lithium Ion Battery Production Equipment
Power: 1KW Vacuum Pump: Contains
Coating Length: 250-1000mm
High Light:

Rechargeable Lab lithium ion battery research

,

Li Ion Battery PackCoating Machine

,

lab lithium ion battery research

Electrode Coating Machine Li Ion Battery Pack



This product is widely used in various high temperature coating research, such as ceramic film, crystal film, battery material film, special nano film; can adapt to the development of science and technology in the future high temperature film formation.

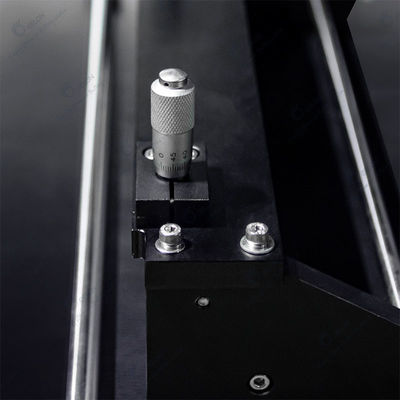

1. With micrometer adjustable film applicator width 250mm
2. The digital display temperature control drying system, the maximum working temperature is 200 ° C;
3. Digital display timer, free to set the drying time;
4. The coating speed is adjustable within the range of 0 to 100 mm/sec
5. Vacuum aluminum plate for quick placement or removal of the substrate

Electrode Coating Machine Li Ion Battery Pack 0Electrode Coating Machine Li Ion Battery Pack 1Electrode Coating Machine Li Ion Battery Pack 2Electrode Coating Machine Li Ion Battery Pack 3Electrode Coating Machine Li Ion Battery Pack 4

Power  AC220V, 2000W
Roll Width 100-330mm
Calendering Thickness 0-2mm
Dial Gauge Accuracy 0.01mm
Roller Surface Max. Temp 130
Surface Hardnedd Of Rollers HRC60-62



Electrode Coating Machine Li Ion Battery Pack 5Electrode Coating Machine Li Ion Battery Pack 6



Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

Electrode Coating Machine Li Ion Battery Pack 7Electrode Coating Machine Li Ion Battery Pack 8

Electrode Coating Machine Li Ion Battery Pack 9
