Product Details:
Place of Origin: CHINA
Brand Name: GELON
Certification: CE

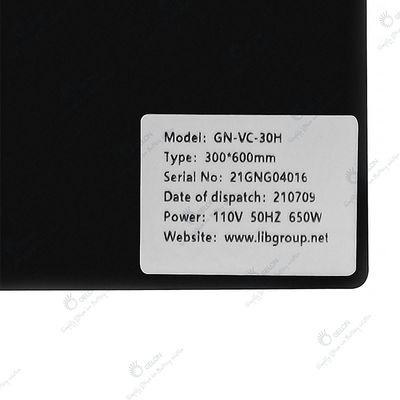

Model Number: GN-VC-30H
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$4800 / pc
Packaging Details: wood case
Delivery Time: 25~ 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500 pc / month

Lithium Battery Lab Coating Machine Li Ion Battery Research Vacuum Film Coater

Description
Name: Lab Heat Coating Machine Vacuum: ≥-84Kpa
Temperature: Max Temperature Can Be 150℃ Adjusted Film Applicator: 300mm
Power Supply: AC220V/50Hz.110V/60Hz Equipment Size: L910*W570*H330mm
Net Weight: 76Kg Air Supply: 0.5~0.8MPa Argon/nitrogen, Or 0.7MPa Compressed Air
High Light:

300mm Li Ion Battery Research

,

lithium battery coating machine

,

220V Li Ion Battery Research

Lab Heat Coating Machine

Lithium Battery Lab Coating Machine Li Ion Battery Research Vacuum Film Coater 0

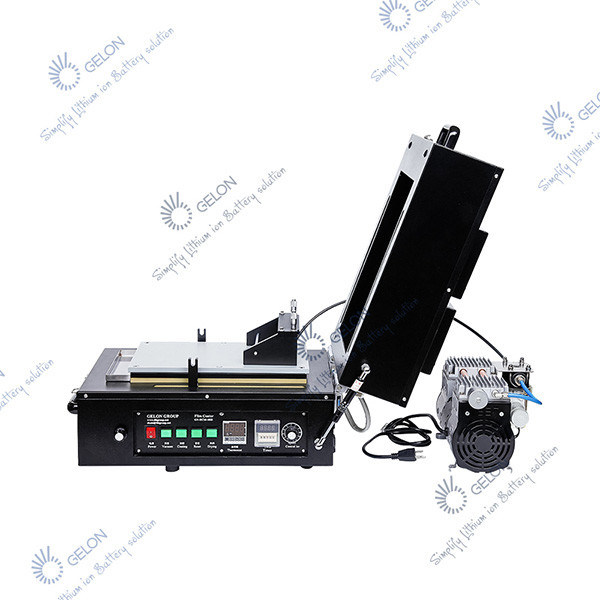

Overview of equipment

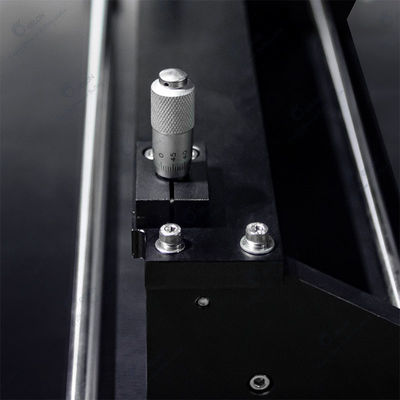

This product is adjusted with a micrometer to achieve the thickness of the film to be applied. This machine is equipped with a precise adjustable film applicator, and the moving pole pushes it to move at a constant speed, so as to achieve the uniformity of the slurry coating on the substrate. This machine is especially suitable for making battery electrode, which can ensure the uniform density of cathode/anode electrode material everywhere on the electrode.



Features

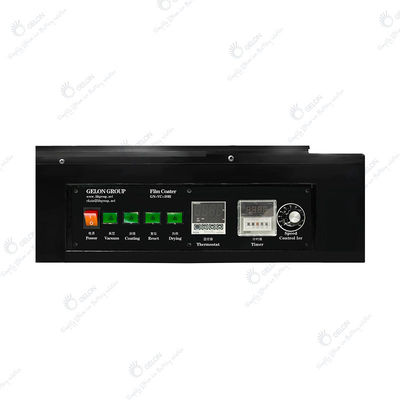

1.The digital display temperature control drying system,

2.Digital display timer, free to set the drying time;

3.The appearance is exquisite, and the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;



Lithium Battery Lab Coating Machine Li Ion Battery Research Vacuum Film Coater 1



Name Parameters Remarks
Vacuum ≥-84Kpa Can be adjusted according to need
Temperature Max temperature can be 150℃ Suggest temperature 120℃
Vacuum plate 300mm(L) x 600mm(W) Other size can be customized
Vacuum plate hole 231 holes(aboutΦ0.5mm/hole)
Adjusted film applicator 300mm The equipment is equipped with a set of 300mm thickness adjustable film applicator as standard, accurancy 0.02mm, the adjustable thickness range is: 0.01 - 3.5 mm; (300mm thickness and width modulated film applicator is optional, and the coating film width can be anywhere between 0-300mm adjust);;
Air supply 0.5~0.8MPa argon/nitrogen, or 0.7MPa compressed air Compressed air is not recommended in the glove box
Power supply AC220V/50Hz.110V/60Hz Can be customized according to customer requirements
Capacity of vacuum pump ≥30m³/h
Power 1200W
Equipment size About L910*W570*H330mm
Package size About L1230*W700*H510mm
Net weight About 76Kg Not include vaccum pump
Gross weight About 111kg
Use the venue   It can be used in the glove box. Please check whether the space of the glove box matches the overall size of the equipment.
Warranty 1 year warranty, lifetime maintenance
Remark: An viscometer can be optional to lock in the viscosity of the slurry used for optimal application, thus maintaining smoothness for each trial application. After coating, a vacuum oven may be required to dry the film and remove the adhesive . In order to secure the adhesion between the coated electrode material and the current collector base material, a roll press can be used.
