18650 21700 Cylinder Cell Battery Crimping Machine 120w Li Ion Battery Sealing Machine

18650 21700 Cylinder Cell Battery Crimping Machine 120w Li Ion Battery Sealing Machine
18650 21700 Cylinder Cell Battery Crimping Machine 120w Li Ion Battery Sealing Machine 18650 21700 Cylinder Cell Battery Crimping Machine 120w Li Ion Battery Sealing Machine

Large Image :  18650 21700 Cylinder Cell Battery Crimping Machine 120w Li Ion Battery Sealing Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Cylinder Cell Crimping Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$1800~3200 per set
Packaging Details: Standard packing/Wood packing
Delivery Time: 20~25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets per month

18650 21700 Cylinder Cell Battery Crimping Machine 120w Li Ion Battery Sealing Machine

Description
Product Name: Battery Sealing Machine Product Name: Cylinder Cell Crimping Machine
Materials: Heavy Duty Steel Platform ,plating And Spraying No Rust Air Supply: Compressed Air 0.6~1.0MPa
Sealing Pressure: 10~150kg/cm2 Power: 120w
Warranty: 1 Year Weight: 35kg
Dimensions: 385mm X 160mm X 325mm Application: 18650/26650/32650/21700
Highlight:

Cylinder Cell Battery Crimping Machine

,

21700 Battery Crimping Machine

,

120w Battery Sealing Machine

Battery Equipment18650,21700 Cylindrical Cases Pneumatic Crimper Crimping Equipment Lithium Ion Battery Sealing Machine

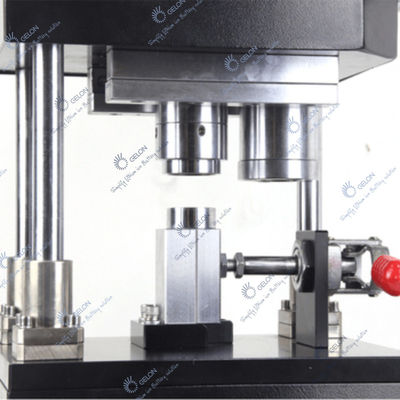

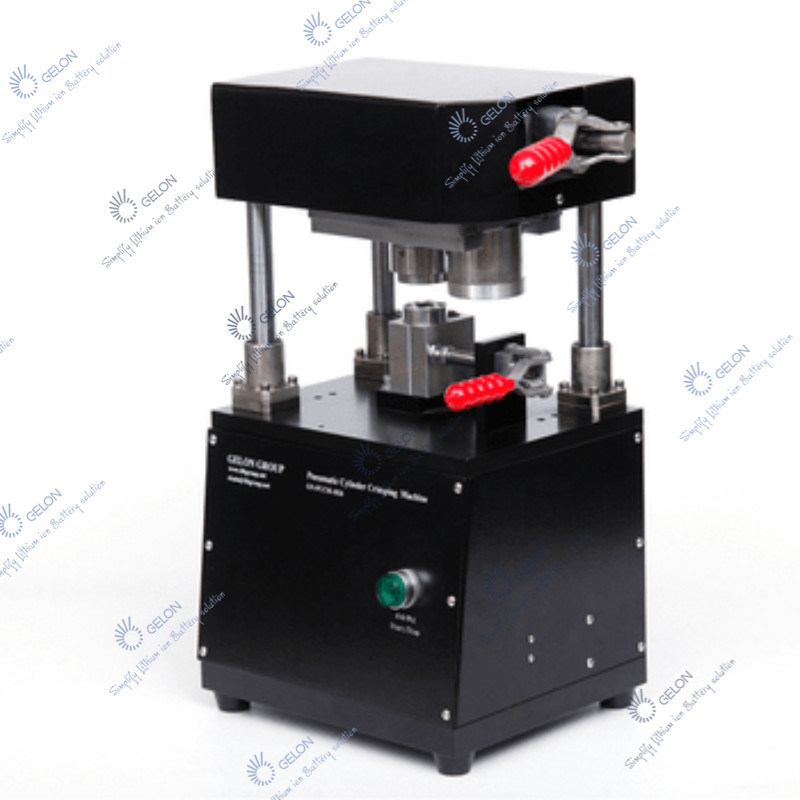

The pneumatic crimping machine is driven by a cylinder to realize the packaging process for the cylindrical battery. The standard configuration mold can be used for the sealing of 18650 batteries. After replacing the mold, other cylindrical batteries (such as 26650) can be sealed.



Driving Force Manual hydraulic pressingup to 5T
Pressure Gauge 0-3500 psi (0-250 kg/cm^2)
Body Stainless Steel
Crimping Dies Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA
Compliance CE certified
Warranty
  • One year limited with lifetime support
  • Parts rusted without regular cleaning and maintenance are not covered
Product Dimensions 320mm(L) x 240mm(W) x 400mm(H)
Application Notes
  • Customized die for other cylindrical cell types is available upon request
  • It is necessary to groove the opening end of the cylindrical case by using the GN-500 grooving machine before sealing the cap
  • Each type of cylinder cell can only be sealed specifically by certain model of equipment.
  • We will also provide free cylindrical cases along with the equipment for your operation practice.
Net Weight 40kg
