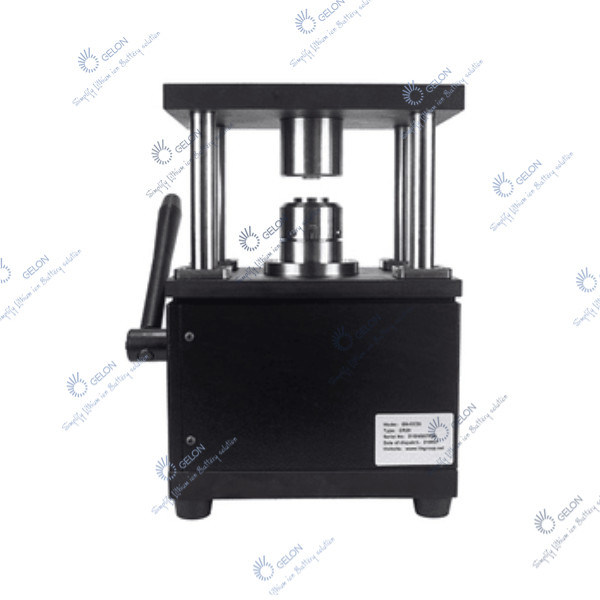

Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper

Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper
Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper

Large Image :  Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-CC20
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD1120-1250/SET
Packaging Details: Wooden Case/Can Custom
Delivery Time: about 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month

Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper

Description
Product Name: Manual Crimping Machine Sealing Pressure: Maximum 1MPa
Sealing Stroke: 30mm Pressure Accuracy: ± 1.5%
Sealing Beat: 14 Seconds/set (refer To CR2032 Battery) Optional Or Add: CR16, CR20, CR24, CR30 And Other Specifications
G.W.: About 35Kg Power Supply: Can Custom
High Light:

Coin Cell Assembly Machine CR2016

,

CR2032 coin cell crimper

,

Coin Cell Assembly Machine CR2025

CR2016/CR2025/CR2032 Manual Coin Cell Crimper Sealing Equipment Button Batteries Lab Device Coin Cell Assembly Machine



Features:

1.The equipment mainly drives the hydraulic pump with a hand rocker rod, put the battery into the mold, drives the hand rocker rod, automatically closes the upper and lower dies, forms the battery seal.It applies to the production of the coin cell battery with samples developed by the laboratory battery materials. Capacitor scientific research seal, can also be used in the factory small batch trial production. Different molds can also be used in dry powder pressing, wet powder pressing, nickel foam pressing, pressing forming, riveting and so on.2. The lower die adopts high-precision positioning ring limit to control the height of battery packaging, so as to avoid the damage of sealing cup caused by excessive packaging pressure

3. The standard configuration sealing die can be used for the sealing of CR2016,CR2025,CR2032 series of button batteries with diameter 20mm, and other diameter button batteries (such as CR2450,CR1620, etc.) can be sealed after replacement of die fittings. Optional disassembly mould can be used to completely disassemble positive and negative electrode battery case after sealing of button battery. It is convenient to study and analyze the sample uptake of the inner material of the battery.

4. The inner ring of die seal cup is equipped with spring force support pillar mechanism to ensure that the button battery can be forcefully ejected by twisting the top screw in case the battery can not be removed when the battery is sealed.

5. The built-in safety overflow oil valve can adjust the pressure according to the need and set the upper limit of the pressure so as to prevent the damage caused by the excessive pressure caused by the misoperation so as to ensure the safety of the use of the machine.

6. In-line pressure gauge, it is possible to observe and accurately control the sealing pressure

7. By hand driving, the pressure is up to 8T, the battery seal has no vibration.

8.Specially designed hydraulic structure, easy to operate.

9.The precision mold design ensures the precise and reliable sealing and forming, and is stable and safe to use.

10.Small size, easy to operate, can be placed in the glove box operation.

11.Beautiful appearance, easy maintenance has the advantages of small volume, convenient operation, accurate molding and so on.

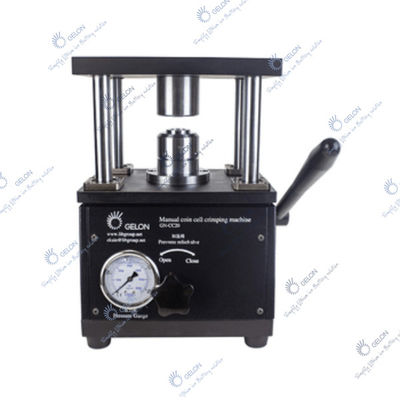

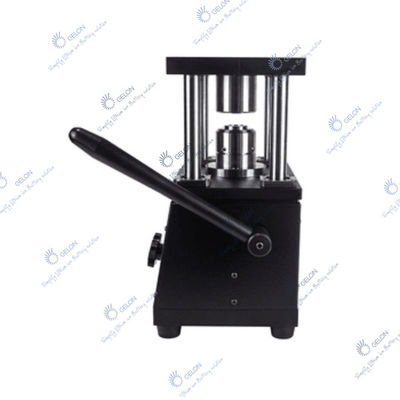

Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper 0Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper 1Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper 2



Sealing stroke 30mm
Sealing pressure Maximum 1MPa
Sealing beat 14 seconds/set (refer to CR2032 battery)
Sealing mold CR20 series packaging mold is optional, can be customized according to customer requirements


Related Products


Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper 3


Company Profile


Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper 4


Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper 5

Certifications


Lab Coin Cell Assembly Machine CR2016 CR2025 CR2032 Manual Coin Cell Crimper 6



We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
