Manual Coin Cell Punching Machine Coin Cell Battery Making Machine

Manual Coin Cell Punching Machine Coin Cell Battery Making Machine
Manual Coin Cell Punching Machine Coin Cell Battery Making Machine Manual Coin Cell Punching Machine Coin Cell Battery Making Machine Manual Coin Cell Punching Machine Coin Cell Battery Making Machine Manual Coin Cell Punching Machine Coin Cell Battery Making Machine

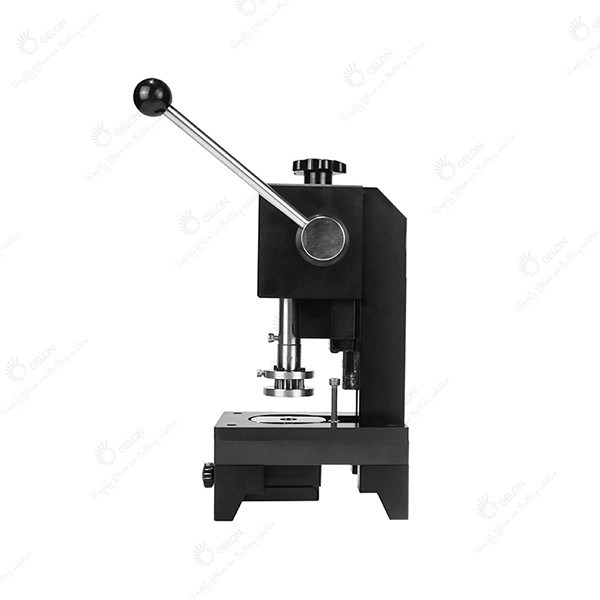

Large Image :  Manual Coin Cell Punching Machine Coin Cell Battery Making Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: GN-CP20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 620-950set
Packaging Details: Standard export package
Delivery Time: 10-15 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month

Manual Coin Cell Punching Machine Coin Cell Battery Making Machine

Description
Product Name: Manual Coin Cell Punching Machine Max. Power Consumption: 300W
Welding Area: 5.2mm(L) X 5.2mm(W) Voltage: 110V AC Or 240V AC 50/60Hz
Ultrasonic Frequency: 30 - 40 KHz Adjustable Frequency Pneumatic Control: Pneumatic Control
Warranty: One Year Limited Warranty With Life Time Support Net Weight: 61 Kg
High Light:

Manual coin cell punching machine

,

Battery Making Machine 300W

,

coin cell punching machine 110V AC

Gelon Manual Coin Cell Punching Machine Coin Cell Battery Making Machine Battery Equipment Battery Assembly Line



Description:
The manual punching machine is researched and designed by our company which is used for cutting various materials(thin metal foil,electrode,separator,etc) in the battery industry. The equipment has fine workmanship, and the resulting discs has no burrs and no indentation after punching, the cutting die can be replaced to achieve different equipped with different size die, it can achieve sheet material cutting and dropping. The design of this machine is small, flexible and convenient. It is very suitable for 0.01~0.5mm thickness battery cathode,anode electrode and separator cutting. Can be easily accessed through a glove box.
There are two kinds: manual punching machine and pneumatic punching machine.
1. Die size can be customized.
2. Compact design enables it can be used in glove box.
3. Punching die can be replaced easily.



Index:

Manual pressure ≥300Kg
Pressing shaft stroke Max. 20mm
Work surface L140mm x W80mm
The size of punching die can be Φ3~24mm,the usual size:10/12/14/15/16/19/20mm
Standard die size Φ12mm and Φ16mm
Weight about 6 Kg

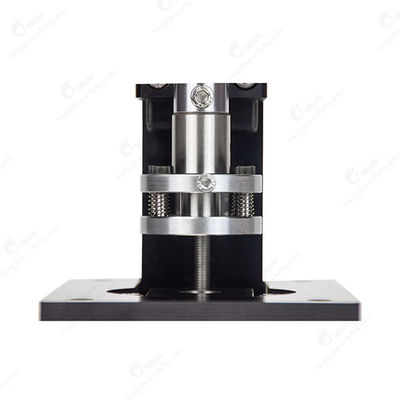

Manual Coin Cell Punching Machine Coin Cell Battery Making Machine 0Manual Coin Cell Punching Machine Coin Cell Battery Making Machine 1








Manual Coin Cell Punching Machine Coin Cell Battery Making Machine 2Manual Coin Cell Punching Machine Coin Cell Battery Making Machine 3Manual Coin Cell Punching Machine Coin Cell Battery Making Machine 4



Manual Coin Cell Punching Machine Coin Cell Battery Making Machine 5Manual Coin Cell Punching Machine Coin Cell Battery Making Machine 6



What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.

2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
