Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine

Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine
Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine

Large Image :  Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-CC20
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $1200-$1450/set
Packaging Details: Standard wooden box for export.
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 50 sets per month

Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine

Description
Production Name: Coin Cell Assembly Equipments Lab Punching Mahcine Usage: Lithium Ion Battey Research And Production
MOQ: 1 Pc Customzie: YES
Shipping: By Sea/Air/Express/Land Supply: Lithium Ion Battery Production Equipment
Compact Size: L110 *W150 *H235mm Commonly Used Mold Size: D8/10/12/14/15/16/17/18/19/20mm
High Light:

Custominze Coin Cell Assembly Machine

,

lithium ion battery production equipment

,

Coin Cell Assembly Machine Manual

Manual Punching Machine Custominze Die Size Coin Cell Assembly Machine

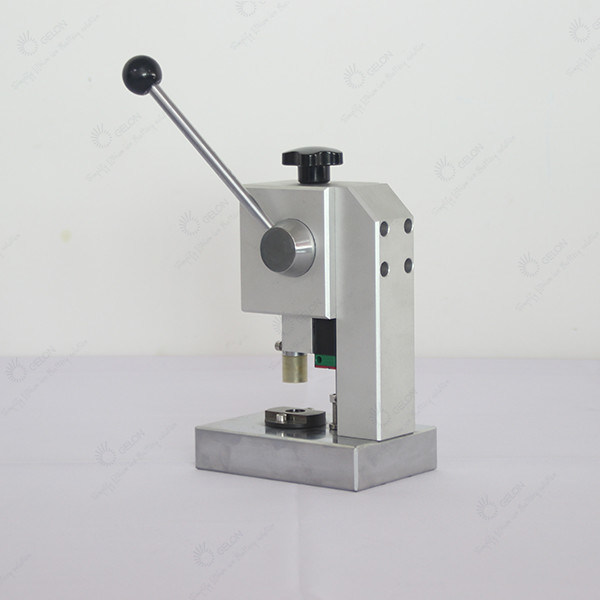

This machine is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from a thin metal sheet/foil (< 0.5 mm) or separator film (<30um). The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researchers as well as TEM sample preparation.



There are two kinds: manual punching machine and pneumatic punching machine.

Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine 0

The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researchers as well as TEM sample preparation.
Specification
SPECIFICATION OF COIN CELL DISC CUTTER/ ELECTRODE PUNCHING MACHINE
Coin cell model
All kind of AG,CR,LIR coin cell m2032,2025,2016 and etc ,according to request
Size(L*W*H)
166mm*196mm*233mm
Mold materials
High quality die block steel,heat treatment to HRC60 hardness
Weight
10kg
Mold precision
+-0.01mm
Cutting Die
6-24mm dia
Details Images

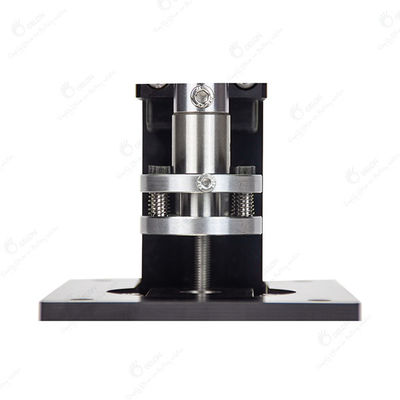

Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine 1
Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine 2

Main Features

This is a precision disc cutter and designed for cutting round disc, such as cu foil ,al foil(thickness 0.005-0.5mm) to prepare electrode/separator disc for coin cell for battery research,. It can be easily put in glovebox through a transition chamber of diameter bigger than 200mm due to its compact size.

Specificatiom

1. Quality ball bear sliding rail for precision cutting.

2. Compact size : L110×W150×H235mm , whcih can be put in standard glove box via > 200mm transition chamber.

3. Standard cutting die is Ф 14 mm.(optional Ф 8 mm ~ Ф 24 mm) according to the customer specified

4. Commonly used mold sizeФ8/Ф10/Ф12/Ф14/Ф15/Ф16/Ф17/Ф18/Ф19/Ф20mm

5. Weight: 6Kg '



Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment

Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine 3Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine 4

Custominze Die Size Coin Cell Assembly Machine Manual Punching Machine 5

What can we supply:

1.) full set of lithium battery materials,including :
LiMn2O4, LTO, NCA, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB) and other cathode&anode battery materials; Alumimun foil, copper foils, battery separator, etc.


2.) full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.


3.) full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.
