Product Details:
|
| Product Name: | Coin Cell Punching Machine | Color: | Black |
|---|---|---|---|
| Usage: | Desktop | Keywords: | Easy To Using,mini |
| Warranty Period: | 1year | ||
| High Light: | Desktop Coin Cell Assembly Machine,aluminum alloy manual punching machine,Lab Research Coin Cell Assembly Machine |
||

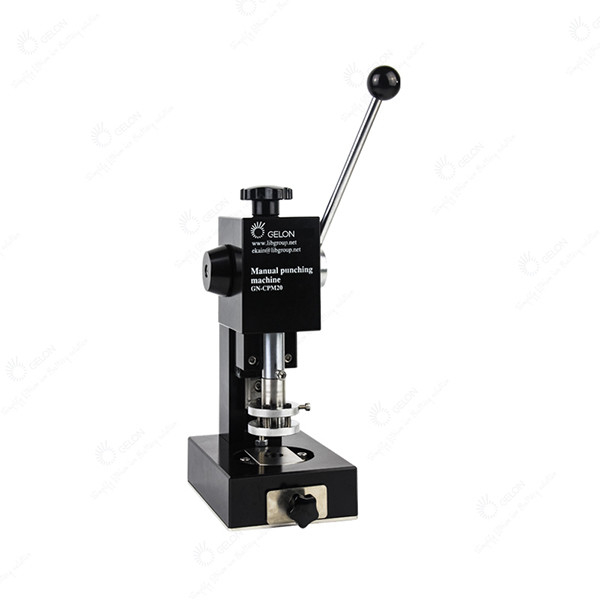

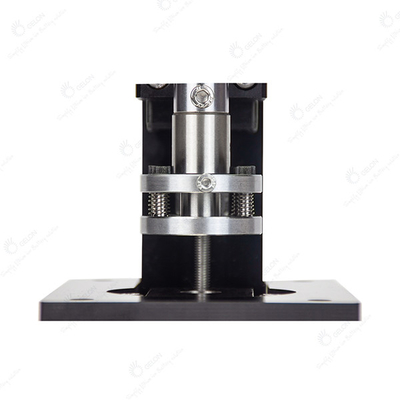

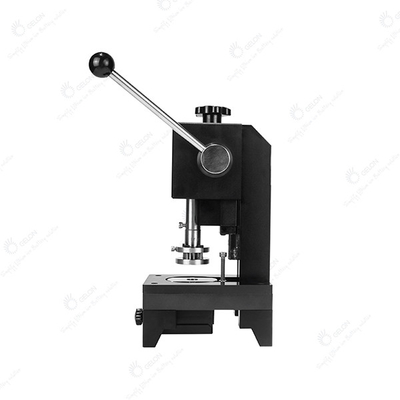

Gelon CR2032 Manual Punching Machine Coin Cell Assembly Machine For lab Research
Introduction
1. The manual punching machine is researched and designed by our company which is used for cutting various materials(thin metal foil,electrode,separator,etc) in the battery industry. The equipment has fine workmanship, and the resulting discs has no burrs and no indentation after punching, the cutting die can be replaced to achieve different sizes needs.
2. Equipped with different size die, it can achieve sheet material cutting and dropping. The design of this machine is small, flexible and convenient. It is very suitable for 0.01~0.5mm thickness battery cathode,anode electrode and separator cutting . Can be easily accessed through a glove box
SPECIFICATIONS
| Dody material | rust-proof aluminum alloy |
| Manual pressure | ≥300Kg |
| Pressing shaft stroke | Max. 20mm |
| Cutting material thickness | 0.01~0.5mm, all lithium battery separator and electrode can be punched |
| Work surface | L140mm * W80mm |

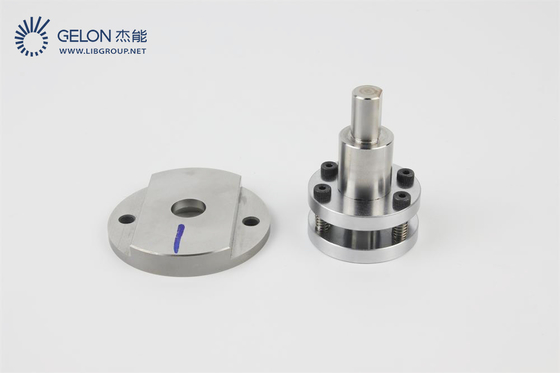

| The size of punching die | Φ3~24mm |
| The usual size | 10/12/14/15/16/19/20mm |
| Standard die size | Φ12mm and Φ16mm |
| Weight | 6Kg |
