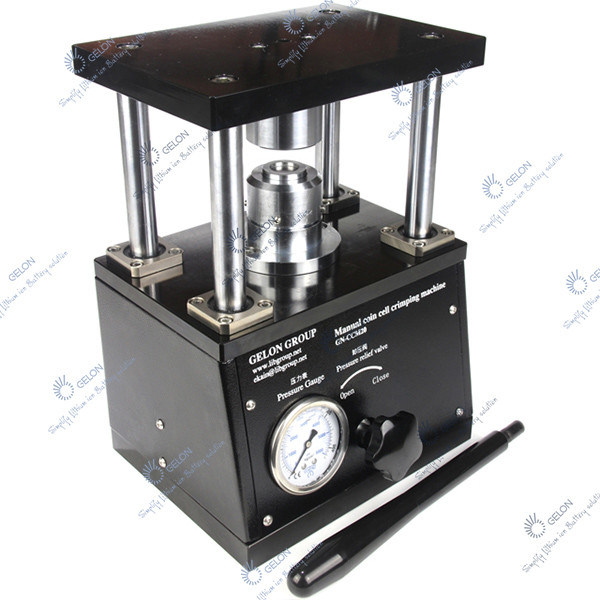

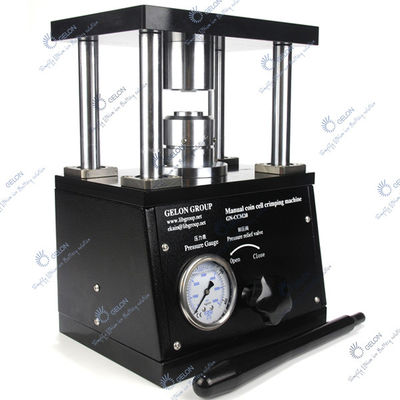

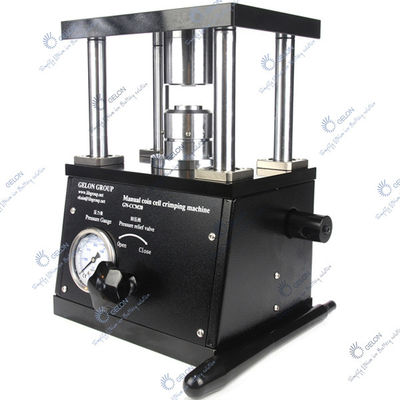

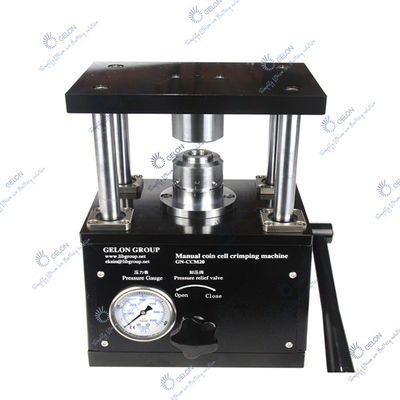

Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine

Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine
Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine

Large Image :  Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-CC20
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD1055-1555/PCS
Packaging Details: wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine

Description
Product Name: Manual Coin Cell Sealing Machine Sealing Pressure: Min.80Kg, Max.1400Kg
Sealing Stroke: 30mm Pressure: ±1.5%
Sealing Efficiency: 20second/pcs (Refer To CR2032 Cell ) Working Type: Manual
High Light:

Lab Coin Cell Assembly Machine

,

hand held crimper sealer

,

Hydraulic Coin Cell Assembly Machine

Lab Hydraulic Manual Sealer Crimper Discrimping Machine CR2032 Coin Cell Assembly Machine



Equipment Summary:
1.This equipment is mainly used for sealing and disassembling coin cell. Only one mold (sealing/disassembling) can be selected for the standard configuration . Manual rocker drive hydraulic pump, put the cell into the mold, hand rocker drive, the upper and lower mold automatically closed, the battery sealing molding, applied to the laboratory battery material research and development of sample production coin cell, capacitor research sealing, also small batch trial production in factory.Different moulds can also be used for dry powder pressing, wet powder pressing, pressing nickel foam, pressing molding, riveting etc.
2.The disassembling mold is used for the complete disassembly of the cathode and ande cell shell after the button battery sealing, which is convenient for the study and analysis of the sample intake of the battery internal materials.



Equipment features:
1.Adopt special hydraulic structure, high pressure, easy operation.
2.High precision sealing, easy to operate.
3.The button cell of different specifications can be sealing and disassembled with different moulds.
4.It has the advantages of small size, convenient operation and precise molding .



Sealing mold

CR2032 for standard

Disassmbling mold

CR2032 for standard

Equipment size

About L270*W290*H340mm

Warranty

One year limited warranty with lifetime support



Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine 0

Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine 1

Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine 2Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine 3

Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine 4Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine 5Lab Coin Cell Assembly Machine Hydraulic Manual Sealer Crimper Discrimping Machine 6
