Laboratory Micro Film Coating Machine With Adjustable Scraper

Laboratory Micro Film Coating Machine With Adjustable Scraper
Laboratory Micro Film Coating Machine With Adjustable Scraper Laboratory Micro Film Coating Machine With Adjustable Scraper Laboratory Micro Film Coating Machine With Adjustable Scraper Laboratory Micro Film Coating Machine With Adjustable Scraper Laboratory Micro Film Coating Machine With Adjustable Scraper

Large Image :  Laboratory Micro Film Coating Machine With Adjustable Scraper

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,800.00 - $5,000.00/ set
Packaging Details: Pack as Standard
Delivery Time: 10-15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 set/month

Laboratory Micro Film Coating Machine With Adjustable Scraper

Description
Model Number: Lab Coating Equipment Storage Type: Store In Warehouse
Power: 1 KW Vacuum Pump: Contains
Coating Length: 250mm-1000mm Dry Temperature: 100C Or To Be Request
Speed: 10-100mm/sec Variable Max Coating Width: 300mm
Power Supply: 220V/50Hz Dimension: L500mm W310mm H330mm
High Light:

Micro Film Coating Machine

,

Heating Coating Machine

,

Laboratory ilm coating machine

GN-VC-25H Laboratory micro coating machine heating coating machine with adjustable scraper for Coin Cell Assembly Machine

Product Description



Lithium ion Battery Equipment Lab Film Coating Machine

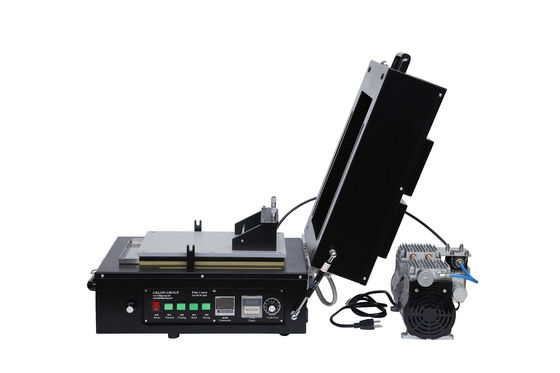

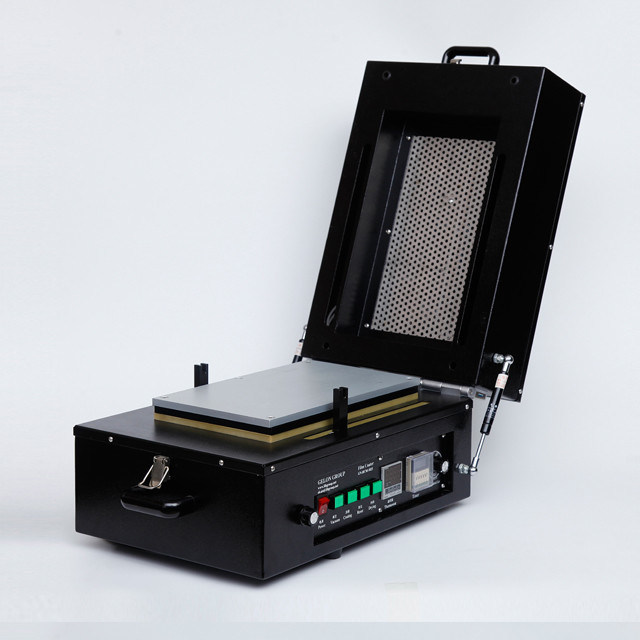

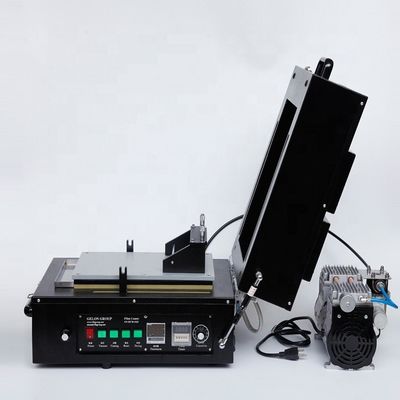

GN-VC-H automatic coater is designed to produce consistent thick film with heating cover. It has a unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet on plate faster and easy, which is particularly useful when coating on thin substrate and make uniform tape casting. One 100 mm width micrometeradjustable applicator is included for immediate use. Heating cover with digital temperaturecontroller can dry film after coating up to 200°C within +/-1°C. This machine is being used for research for ceramic tap casting and Li-Ion battery electrode coating.
Products Features:
1. Coating width can be customized from 100mm to 300mm,coating strength is from 250mm to 1000mm.
2. Oilless vacuum pump is included.
3. Traverse Speed:10-100mmc variable.
4. Heating device can be inside cover,can be bottom or both with heating.
Index:
Power
1KW
Dry Temperature
100°C or to be request
Vacuum pump
Contains
Speed
10-100mm/sec variable
Coating Length
250mm --1000mm
Max. Coating Width
300mm



Laboratory Micro Film Coating Machine With Adjustable Scraper 0Laboratory Micro Film Coating Machine With Adjustable Scraper 1Laboratory Micro Film Coating Machine With Adjustable Scraper 2Laboratory Micro Film Coating Machine With Adjustable Scraper 3Laboratory Micro Film Coating Machine With Adjustable Scraper 4Laboratory Micro Film Coating Machine With Adjustable Scraper 5

Laboratory Micro Film Coating Machine With Adjustable Scraper 6Laboratory Micro Film Coating Machine With Adjustable Scraper 7Laboratory Micro Film Coating Machine With Adjustable Scraper 8
