Laboratory 8 Channel Battery Tester Battery Testing Equipment With Board Coin Cell Test

Large Image : Laboratory 8 Channel Battery Tester Battery Testing Equipment With Board Coin Cell Test

Product Details:

Place of Origin:	CHINA
Brand Name:	GELON
Certification:	CE
Model Number:	GN-BTS5V

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD109/pcs
Packaging Details:	Standard exported package : Internal anticollision protection, external export wooden box packaging.
Delivery Time:	15 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500pcs/month

Contact Now

Laboratory 8 Channel Battery Tester Battery Testing Equipment With Board Coin Cell Test

Description

Input Power:	AC 220V ±10% / 50Hz	Input Active Power:	425W
Tester Package Size:	580480220mm	Weight:	20kg
Function:	Polarity Connection Performance	Warranty:	1 Year
High Light:	Laboratory Battery Tester , lithium ion battery testing equipment , 8 Channel Battery Tester

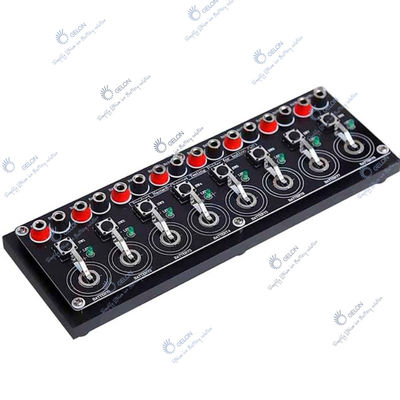

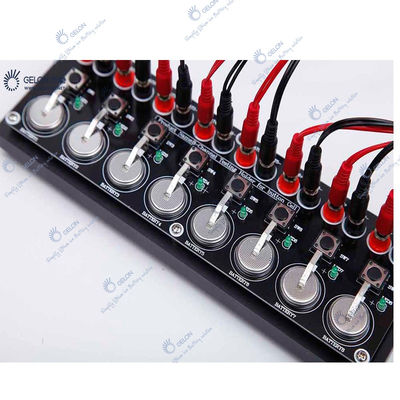

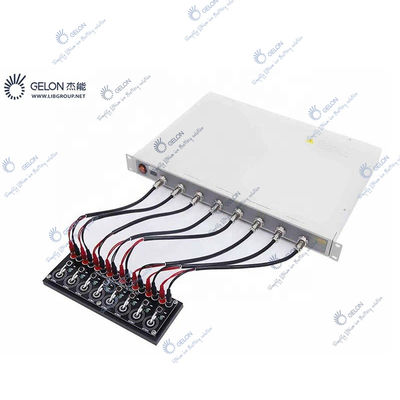

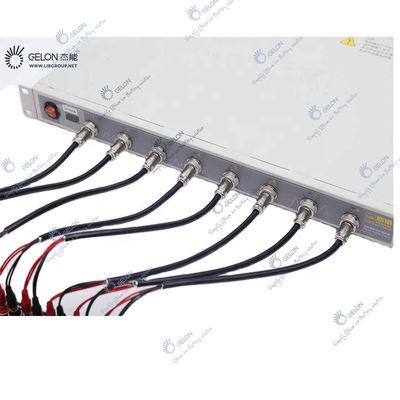

Laboratory 8-channel Battery Tester With Board Coin Cell Test Board

Laboratory 8 Channel Battery Tester Battery Testing Equipment With Board Coin Cell Test 0

The 8 Channel coin cell test board is suitable for performance testing of coin cell up to 25mm in diameter, and can detect 1-8 coin cells. It is convenient to put various coin cells in the specification range into the holder, and check whether the polarity of the batteyr is correctly connected and whether the battery is powered by the self-locking button. Finally , the battery performance is detected by the connection with the battery analyzer.

Item	Data
Input resistance	≥1MΩ
Voltage	25mV~5V
Accuracy	± 0.05% of FS
Current	Range 1:0.5mA-0.1A;Range 2:0.1A-6A
Number of channels	8
Operating temperature range	0 ℃ ~ 40 ℃
Storage temperature range	-10℃~50℃

Laboratory 8 Channel Battery Tester Battery Testing Equipment With Board Coin Cell Test 1

Laboratory 8 Channel Battery Tester Battery Testing Equipment With Board Coin Cell Test 6
