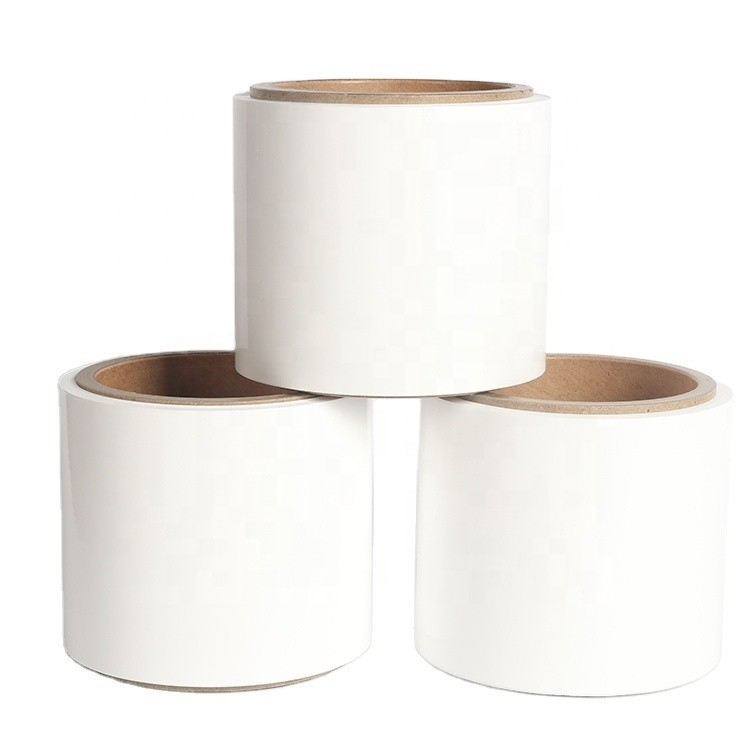

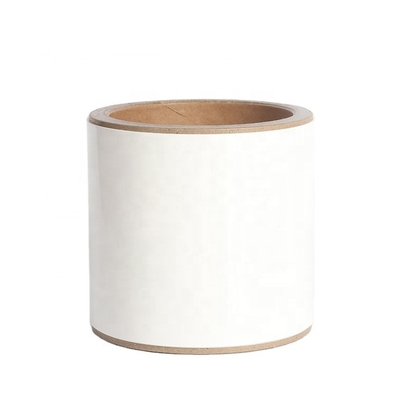

PE / PP Separator 2325 Battery Testing Equipment Ceramic Coated Separator

PE/PP Separator Ceramic Coated Separator 2325 Separator Lithium Battery Materials

Lithium battery materials--Celgard separator--Li-ion battery separator/membrane
1. Thickness: 16&18&20&25&30&40micron
2. Width: 60mm
3. MOQ: 50Sqm

Specification for 16micron thickness for reference:
TermUnitInspection value
Appearance Ivory-white
Thicknessmicron16± 2
Gas permeabilitySec/100ml350-550
Porosity%38-44
Puncturing Strengthg>300
Tensile strength MDMpa>90
Tensile strength TDMpa>100
Film close temperaturedegree≤ 135
Film break temperaturedegree≥ 147
90 degree heat shrink MD%≤ 3.5
90degreeheat shrink TD%≤ 2
105degree heat shrink MD%≤ 5
105degree heat shrink TD%≤ 3
120degree heat shrink MD%≤ 20
120degree heat shrink TD%≤ 15

Advantages:

High safety: Multilayer membrane efficiently reduces the safety hazards (crystal point, holes…) which are found as defects on single layer membrane; No TD shrinkage, , low MD shrinkage; Perfect heat resistance and anti-oxidant; High puncture strength & mechanical strength , suitable for high/low voltage system.

Good uniformity: Using popular dry & uniaxial stretching process, insure the pore sizes uniformity and well distributed on membrane. The separator has multilayer structure with better thickness uniformity to improve Li-ion battery cycle life.

Excellent air permeability: High porosity, high air-permeability, low sinuosity, suitable for high rate discharging of electric vehicle Li-ion battery.

Various products: Basic separator, Ceramic coated separator, Polymer coated separator, Multifunctional hybrid coating separator, Multi-layer functional coated separator.
