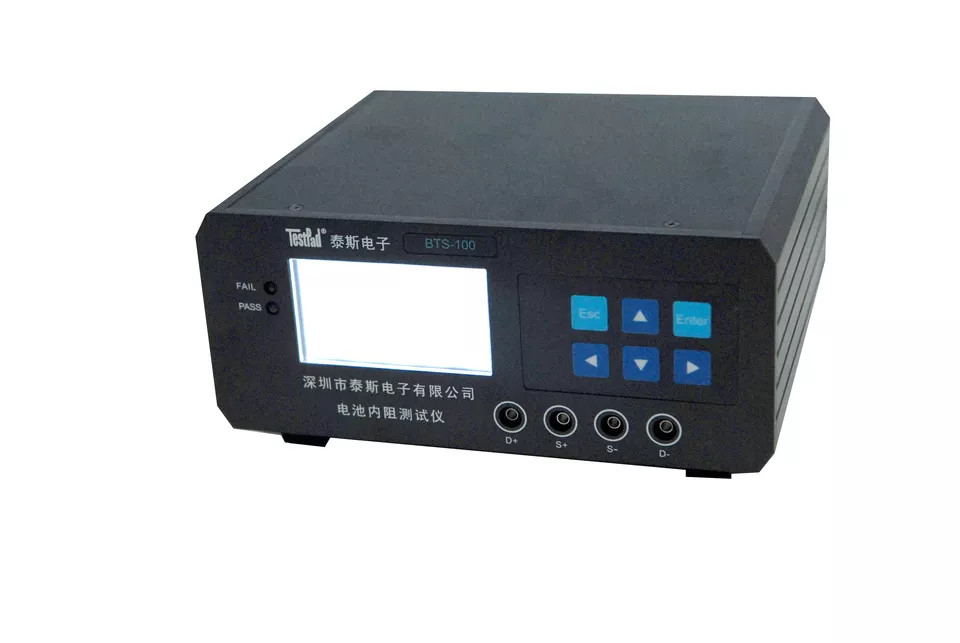

18650 Battery Test Machine Battery Internal Resistance Tester

18650 Battery Test Machine Battery Internal Resistance Tester
18650 Battery Test Machine Battery Internal Resistance Tester

Large Image :  18650 Battery Test Machine Battery Internal Resistance Tester

Product Details:
Place of Origin: CHINA
Brand Name: Gelon
Certification: CE
Model Number: BTS100
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: $750USD/SET
Packaging Details: STANDARD PACKAGE
Delivery Time: 5-8DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100SET/MONTH

18650 Battery Test Machine Battery Internal Resistance Tester

Description
Testing Speed: 0.5seconds Electric Source: 220V±10% 50Hz
Consume Power: Max 50W Tester Size: L(190mm)*W(153mm)*H(90mm)
Net Weight: 3kg Product Name: Battery Testing Machine
High Light:

18650 Battery Test Machine

,

Battery Internal Resistance Tester

,

0.5seconds Battery Test Machine

Product Application

Applied environment:
1) Temperature: 0~40℃
2) Height application: less than 2KM elevation
3) RH: 40~80%RH
Measurement range:
1)voltage measurement range:
0-5V minimum resolution:1mV
0-50V minimum resolution:10mV
2)internal resistance measurement range:
0-40mΩ minimum resolution:0.01mΩ
0-400mΩ minimum resolution:0.1mΩ
0-4000mΩ minimum resolution:



Testing speed 0.5seconds
Electric source 220V±10% 50Hz
Consume power max 50W
Tester size L(190mm)*W(153mm)*H(90mm)
Net weight 1.5kg
Gross weight 2kg
