Product Details:
|
| Effective Volume: | 1000L | Inner Dimension: | W1000*H1000*D1000mm |
|---|---|---|---|
| Overall Dimension: | W1500*H1900*D1820mm | Environment Temp.: | +5℃ ~ +35℃ |
| Relative Humidity: | ≤85% | Temp. Range: | -20℃~+150℃ |
| Power: | 380V±10%,50Hz,Three Phase(others Can Be Customized), About 10.0KW | ||
| Highlight: | 1000L Battery Testing Equipment,lithium ion battery analyzer,Three phase li ion tester |
||

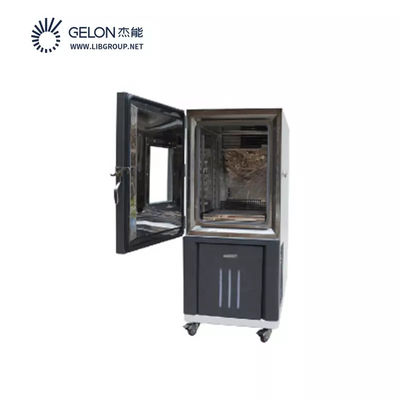

Battery Test Equipment High And Low Temperature Testing Box for lithium ion battery test
I,Basic Introduction
1.1 Function Introduction
This equipment mainly used for battery high low temperature test,temperature change etc. Environment simulate reliability test.
Specification:
| Effective Volume | 1000L |
| Inner Dimension | W1000*H1000*D1000mm |
| Overall Dimension |
W1500*H1900*D1820mm
Kindly remark:exact overall dimension please refer to the final design drawing !
|
| Condition |
Environment temp.+5℃ ~ +35℃,relative humidity≤85%.No load(without specimen in the
testing zone)
|
| Temp. Range | -20℃~+150℃ |
| Power | 380V±10%,50Hz,Three phase(others can be customized), About 10.0KW |
Remark: The effective test space shall not exceed 3/5 of the inner chamber size
We also can supply others
Full set of lithium battery materials
LFP,LMO,LCO,NMC,NCA; LTO,MCMB,Natural Graphite, Separator, Electrolyte & Other accessories for new power Lithium Ion Batteries
Full set of lithium battery equipments,for example
-Cathode/Anode Materials Mixer
-Coating machine
-Vacuum Mixing Machine
-Rolling Machine
-Pressing Machine
-Slitting/Cutting machine
-Welding machine
-Vacuum sealed packaging machine
-Punching Machine
-Stacking Machine
-Glovebox
-Testing machine,etc.
Full set of lithium battery technology
We are good at designing and setting up the lithium ion battery production line and laboratory line with semi-auto or full automatic equipment.
