Sealing Machine Coin Cell Assembly Machine

Sealing Machine Coin Cell Assembly Machine
Sealing Machine Coin Cell Assembly Machine Sealing Machine Coin Cell Assembly Machine Sealing Machine Coin Cell Assembly Machine Sealing Machine Coin Cell Assembly Machine

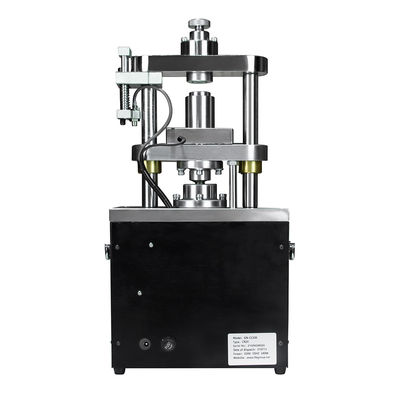

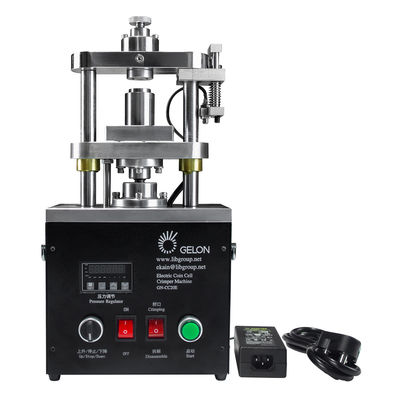

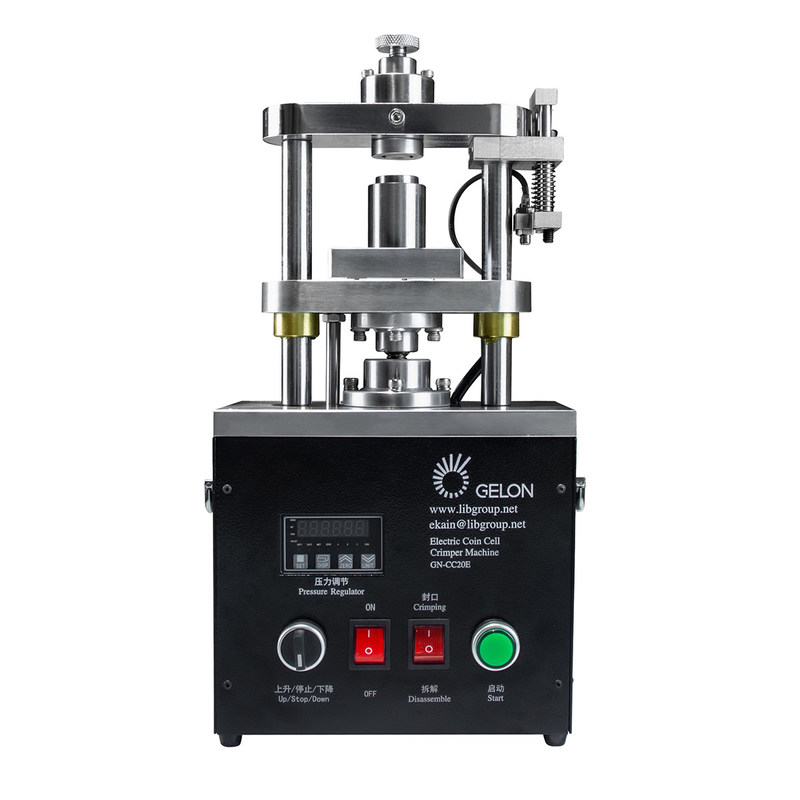

Large Image :  Sealing Machine Coin Cell Assembly Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-CC20E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1950 per set
Packaging Details: Plywood box
Delivery Time: 10-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10set per month

Sealing Machine Coin Cell Assembly Machine

Description
Product Name: Coin Cell Assembly Machine Electric Crimping Machine Sealing Machine Power: AC220V 50HZ
Sealing Pressure: 80-1400kg Sealing Stroke: 30mm
Pressure Precision: ±1.5% Sealing Speed: 14s/pcs
Dimension: 441*159*391mm
High Light:

AC220V Coin Cell Assembly Machine

,

Electric Coin Cell Crimping Machine

,

CE Coin Cell Crimping Machine

Coin Cell Assembly Machine Electric Crimping Machine Sealing Machine



This equipment is mainly driven by motor,After putting the battery in the mold, click the start button, and the lower mold automatically rises,When the pressure reaches the set pressure, the lower die rises automatically.In the process, the battery sealing is formed. This crimping machine mainly uses for sample making of coin cell in lab battery materials research, capacitor research sealing and can also be used in the factory less batch trial production. Different molds can also be used for dry powder pressing, wet powder pressing, nickel foam pressing, pressing molding, riveting and so on.



Standard Crimper Die One set of crimping dies for all CR20XX coin cell
Structure Heavy duty stell plate
Pressure 80-1400kg
Net Weight 25kg
Machine overall Dimension 300L*190W*310H mm
Shipping weight 35kg



Sealing Machine Coin Cell Assembly Machine 0

The crimper seal all types of CR20XX series coin cells, such as CR2032, CR2025 and CR2016 without changing die and also can crimp CR2325, CR2450 cases or other special size with optional die. What is more, customer can easily change the crimping die to discrimpting to convert it. It is perfect to operate in glove box.



Equipment Features

1. Touch screen operation, easy parameter setting and high degree of automation.

2. The sealing pressure value can be set and displayed.

3. It adopts electric drive, and the battery seal has no vibration and no leakage.

4. Configured with different molds, button batteries of different specifications can be encapsulated and disassembled, so that one machine can be used for multiple purposes.

5. Precise mold design ensures accurate and reliable sealing molding, stable and safe use.

6. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding and so on.



Sealing Machine Coin Cell Assembly Machine 1

Gelon(Int) LIB Group Ltd was set up as a manufacturer and exporter in 2007, dealing with lithium battery materials, equipments, technology, etc. Gelon New Battery Materials Co., Ltd., E-Battery Co., Ltd., Linyi Gelon LIB Co., Ltd., with total manufacturing facilities of around 100,000 square meters and more than 500 staff.

Gelon LIB Group focus on r&d, manufactures and sales of new materials(anode, cathode, separator, additives etc) for lithium ion battery and we also offer full sets of materials solution to customers. Our preponderant products are Lithium Iron Phosphate(LiFePO4), Lithium Manganese Dioxide(LiMn2O4), Lithium Cobalt Oxide(LiCoO2), Lithium Nickel Manganese Cobalt Oxide(LiNiMnCoO2), Lithium Titanate Oxide(LTO) materials, graphite materials(MCMB), separator and so on for new power lithium ion batteries.

We are confident on our quality and service. And ensure to offer the best service based on our specialty and empressement. Our aim is to be the comprehensive company dealing with one- stop services for lithium battery in the world.



Sealing Machine Coin Cell Assembly Machine 2

Sealing Machine Coin Cell Assembly Machine 3
