Product Details:
|
| Product Name: | Mechanical Shock Tester | Operating Platform: | 250 × 200 Mm |
|---|---|---|---|
| Max. Load: | 10KG | Peak Acceleration: | 20 To 1500G |
| Pulse Duration: | 0.2~18ms | Shock Range(N):: | 500～155000 |
| Equipment Dimensions: | 660 × 700 × 1900mm | Equipment Weight: | 820 Kg |
| Power Required: | AC 220V±10％ 50Hz，2kVA | MOQ: | 1 Set |
| Highlight: | Lithium Ion Battery Mechanical Shock Tester,2kVA Battery Mechanical Shock Tester,Shock Battery Testing Equipment CE |
||

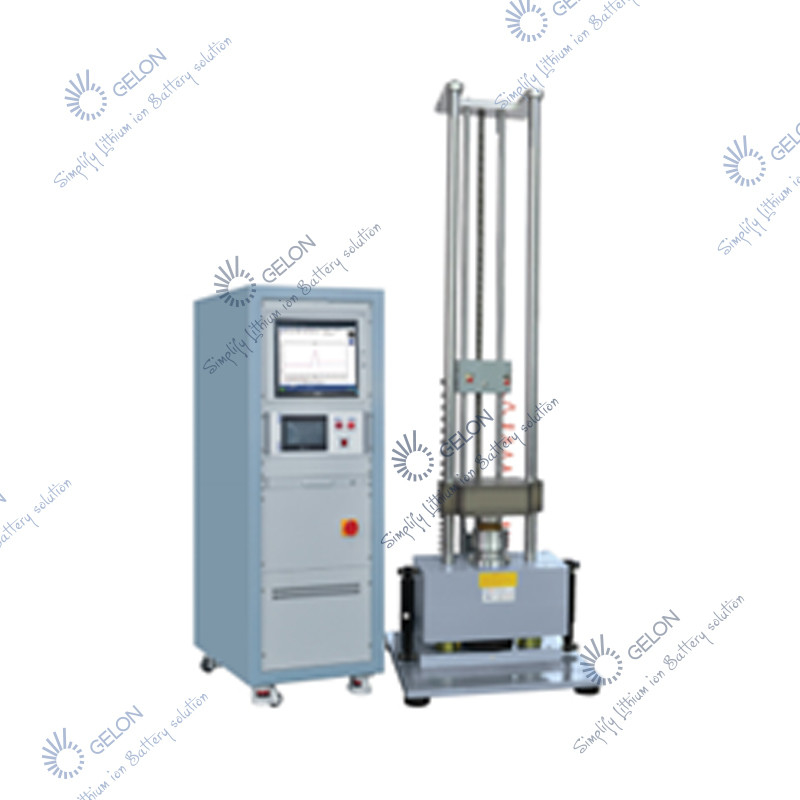

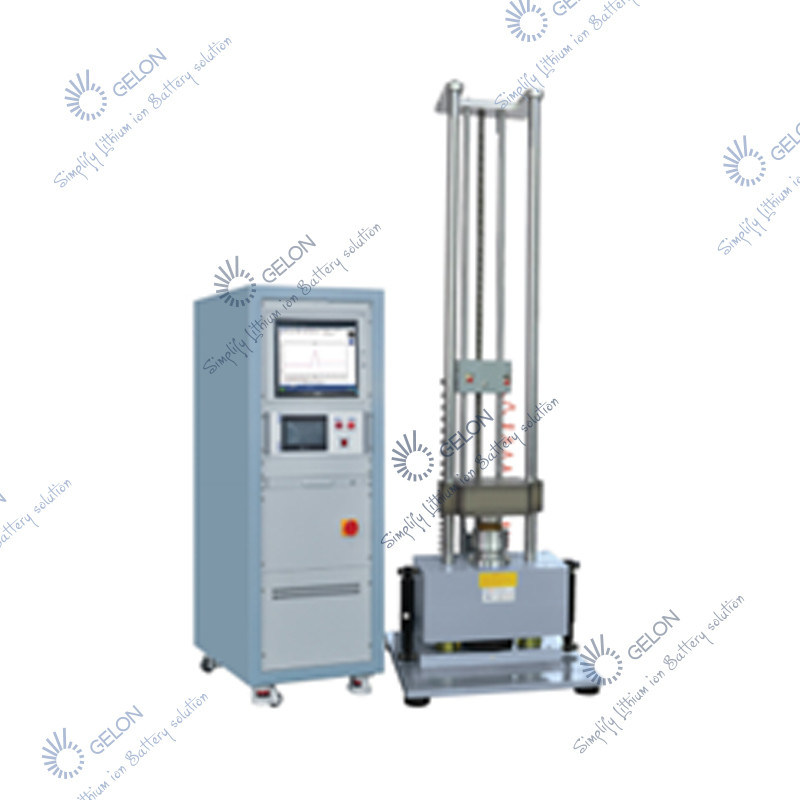

Lithium Ion Battery Mechanical Shock Tester Shock Testing System Battery Testing Lab Battery Equipment
Application:
The shock testing system of BE-SKT series are mainly applicable to shock resistance tests in such fields as electronic products, aerospace, shipping, military industry, automotive parts and transportation. Shock tests in form of half sine wave, final peak saw tooth wave or trapezoidal wave shock tests can be carried out by selecting different waveform generators.
Standard Compliance:
IEC62133;UL1642,UN38.3 and other national and international standards, such as: GB/T2423-2008, GJB150, GJB360, GJB548, UN38.3, IEC-62281, GJB1217, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc
Main Features:
1.Free drop type shock tester using hydraulic lifting and HP fluid braking;
2.Use of pneumatic-hydraulic boosting and strong friction brake to prevent secondary shock braking;
3.Shock measurement device: single-channel data acquisition, simultaneous acceleration data measurement, storage, report printing, data callback, database management of two channels.
4.Use of rubber module, producing a wide range of half sine pulse with arbitrary action time.
5.Availability for equivalent drop test of packing boxes.
| Input channels | 2 channels |
| Sampling frequency | 192KHz |
| Pulse duration | 50-1ms |
| Communication interface | USB2.0 |
| Supportive standard | ISO, UN38.3, MIL-STD-810, user defined |
