Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine

Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine
Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine

Large Image :  Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine

Product Details:
Place of Origin: China
Brand Name: GELON
Certification: CE
Model Number: GN-CC20E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD2500-2800/set
Packaging Details: Standard Export Package of Crimping Machine
Delivery Time: 25-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000sets/month

Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine

Description
Product Name: Coin Cell Crimping Machine Driven Type:: Electric
Key Selling Points: Easy To Operate Max Speed: 5m/min
Dimension(L*W*H): 25cm 20cm 45cm Sealing Pressure: Min.80Kg, Max.1400Kg
Sealing Mold 1: Use For Diameter Of 20 Mm CR2016,CR2025,CR2032 Sealing Stroke: 30mm
Disassembly Die: Yes Voltage: 220V/110V, Single Phase 220VAC±10%
Warranty: 1 Year Weight: 35 KG
High Light:

Electric Coin Cell Crimper

,

5m/Min Coin Cell Crimping Machine

,

Hydraulic Battery Sealing Machine

Coin Cell Crimper Hydraulic Battery Sealing Machine Battery Equipment

1. Equipment Introduction This equipment is mainly used for button battery sealing and button battery disassembly. This equipment can only choose one (sealing/disassembling) mold as standard. It is mainly driven by motor. After putting the battery into the mold, start the motor button , The upper and lower molds are automatically closed, and the battery is sealed and formed. It is used in the production of samples for the research and development of battery materials in the laboratory, and the research and sealing of button batteries and capacitors. It can also be used for small batch trial production in factories. Dies with different configurations can also be used for dry powder tableting, wet powder tableting, foam nickel pressing, pressing molding, riveting and other operations.
2. Equipment Features 1. Touch screen operation, easy parameter setting and high degree of automation. 2. The sealing pressure value can be set and displayed. 3. It adopts electric drive, and the battery seal has no vibration and no leakage. 4. Configured with different molds, button batteries of different specifications can be encapsulated and disassembled, so that one machine can be used for multiple purposes. 5. Precise mold design ensures accurate and reliable sealing molding, stable and safe use. 6. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding and so on.
Name
Parameters
Sealing pressure adjustable range
Min.80Kg, Max.1400Kg
Sealing stroke
30mm
Pressure Accuracy
±1.5%
Sealing Efficiency
20 second/piece
Power supply
AC220V/50Hz.110V/60Hz
Equipment dimension
About L240*W190*H450mm

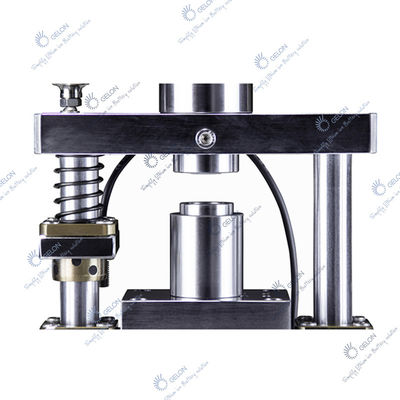

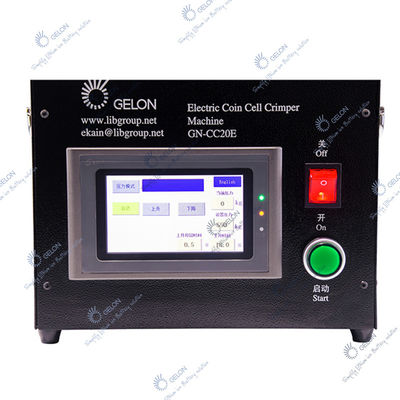

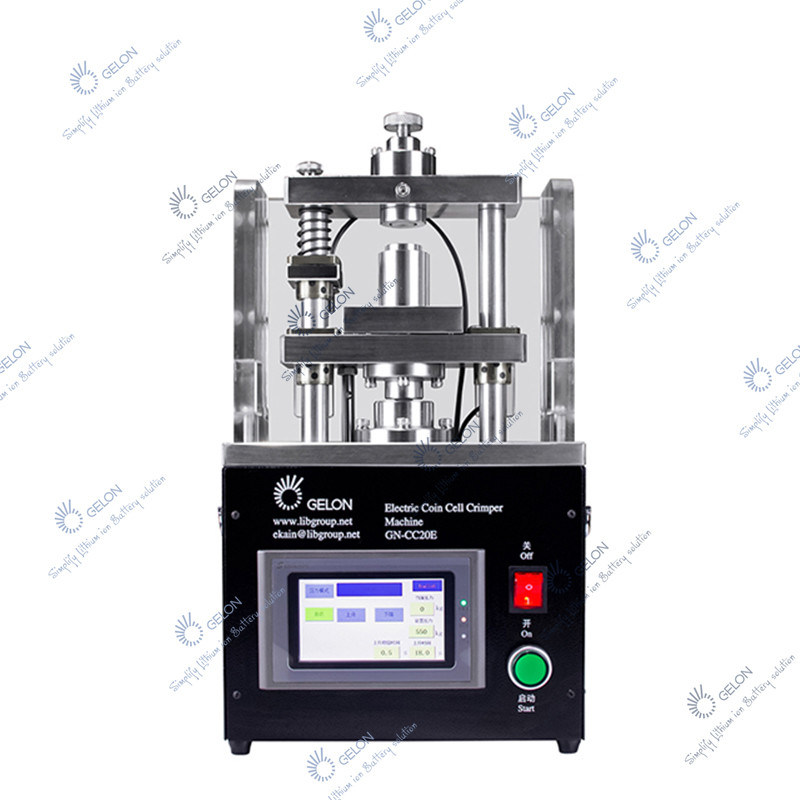

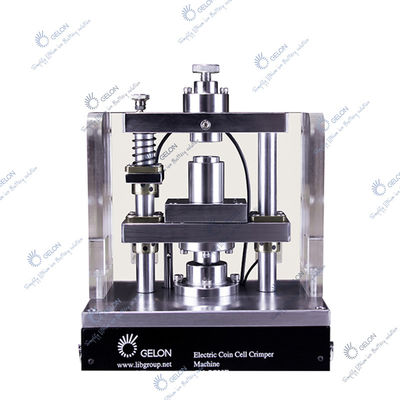

Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine 0

Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine 1

Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine 2

Electric Coin Cell Crimper 5m/Min Hydraulic Battery Sealing Machine 3
